Size: 25.15mm x 34.15mm
Supply Voltage: 5V
Video Input:  RGBHS or YPbPr
Audio Input: Analog or SPDIF Audio
Video Output: HDMI
Latency: Less than 1ms


This tiny, power-packed module takes in a VGA or Component signal (depending on the version) and outputs an HDMI signal with an embedded analog or SPDIF audio front-end for use in your smallest of projects.  This design is a higher quality, smaller, and more efficient version of the widely available analog-to-digital modules that are available online.  If you are not happy with those modules, then you will absolutely be happy with these.

The VGA-input mode can accept any resolution from VGA to UXGA and does not provide any internal scaling of the image. The Component-input mode can accept any resolution video signal up to 1080p60 and does not provide any internal scaling of the image.

This board can take in either SPDIF or analog audio. The SPDIF audio format can be Dolby 5.1 Surround Sound and it is embedded over the video output for use with any surround sound system connected to your TV.

This device typically consumes <300mA in all use cases; however, you should test this design in your system before designing a specific regulator.

  • Supports 480i/p, 576i/p, 720p25/30/50/60, 1080i50/60, 1080p24/25/30/50/60.
  • Supports RGB graphics from VGA to UXGA

Please be aware that these boards contain components that are sensitive to ESD strikes.  Be sure to handle these using proper ESD handling techniques.

All company, brand, and product names are trademarks or registered trademarks of their respective holders. Electron Shepherd LLC has no affiliation to, is not associated or sponsored by, and has no express rights to third-party trademarks.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Latency

We used a Time Sleuth to measure the latency that this module adds during its analog-to-digital conversion.

All measurements were done with a 7" Loncevon HDMI monitor with the Time Sleuth output resolution set to 1080p @ 60Hz.

Customer Reviews

Based on 62 reviews
87%
(54)
6%
(4)
3%
(2)
2%
(1)
2%
(1)
J
JP A.G.
Perfect for the Dreamcast

So just like the PS2 Phat, I have installed this into my Dreamcast, and it's amazing how good it looks.

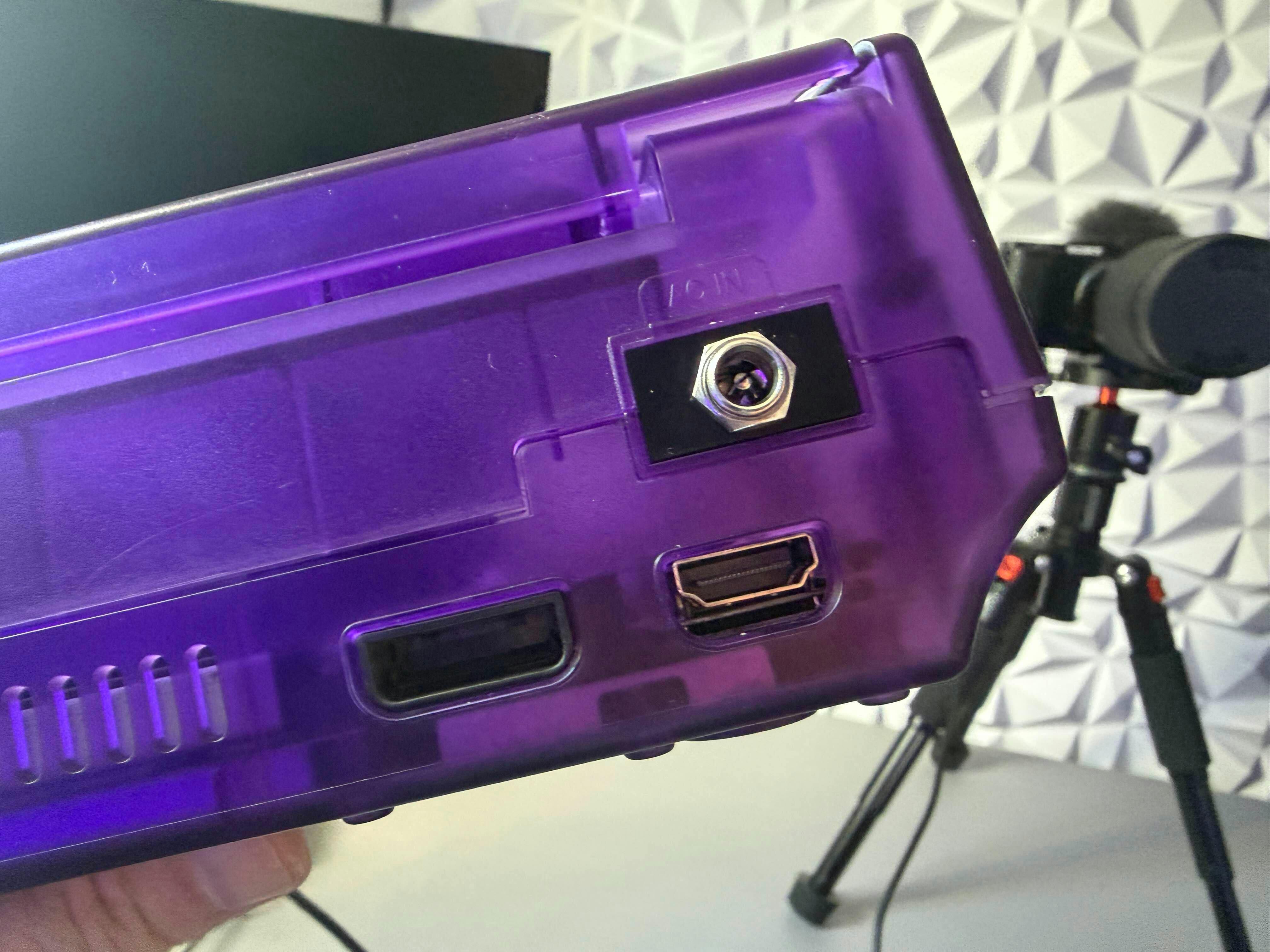

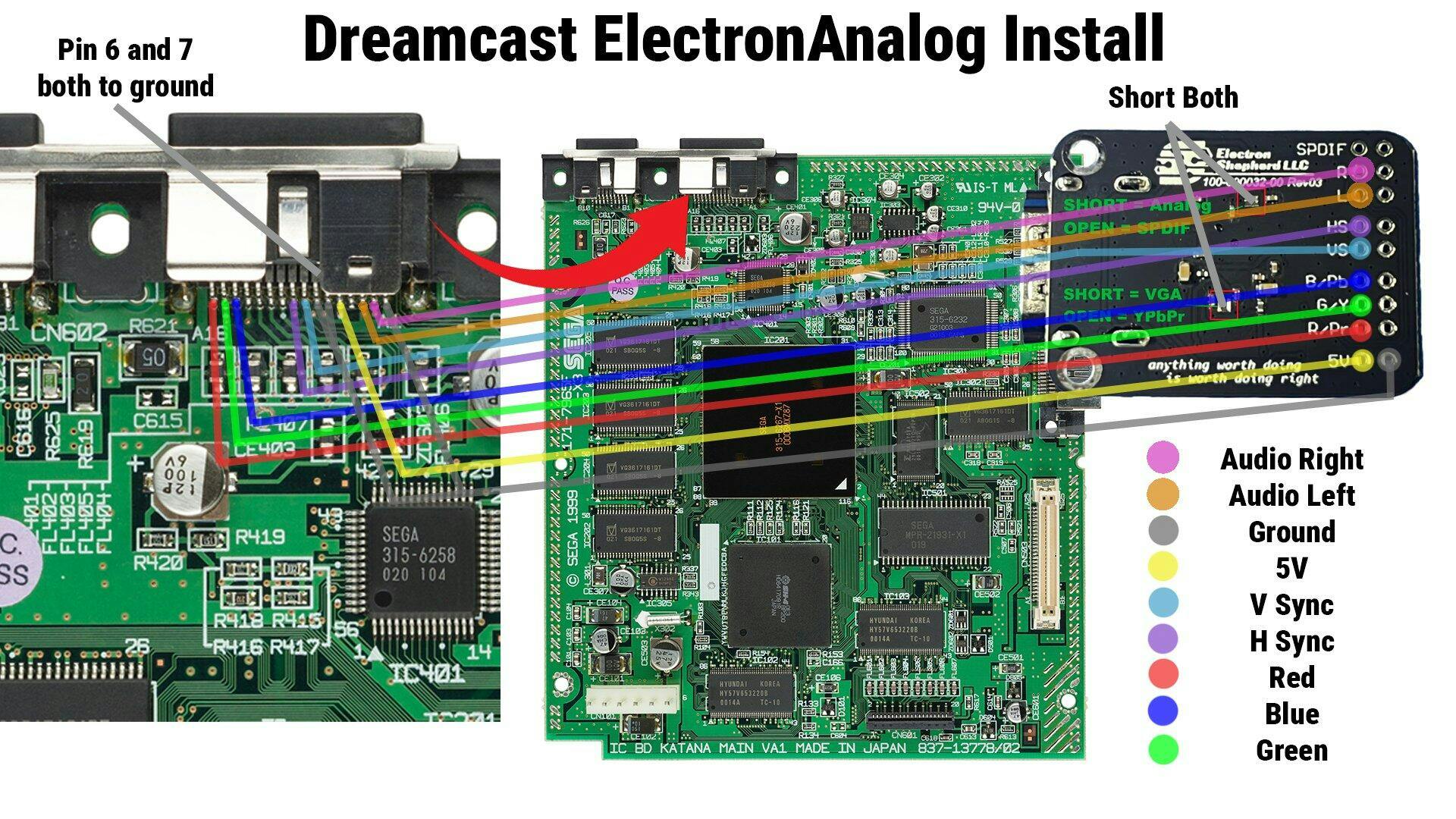

I have also put together a diagram to help others, and as you can see, I removed the serial port, as I never used it anyway.
Thanks again Electron Shepherd and next I will look at doing this mod to other consoles and of course I will post a Diagram here :P

H
Hydrolytic
Electron Analog HDMI External box

The installation is easy enough and the picture looks great. Unfortunately, it was extremely difficult to mount this securely in an OEM PS2 slim shell. I created an external mounting box for this without too much trimming of the OEM Shell (and you get to keep the network connection!), you can find it at https://www.printables.com/model/1414770-electron-analog-hdmi-external-box

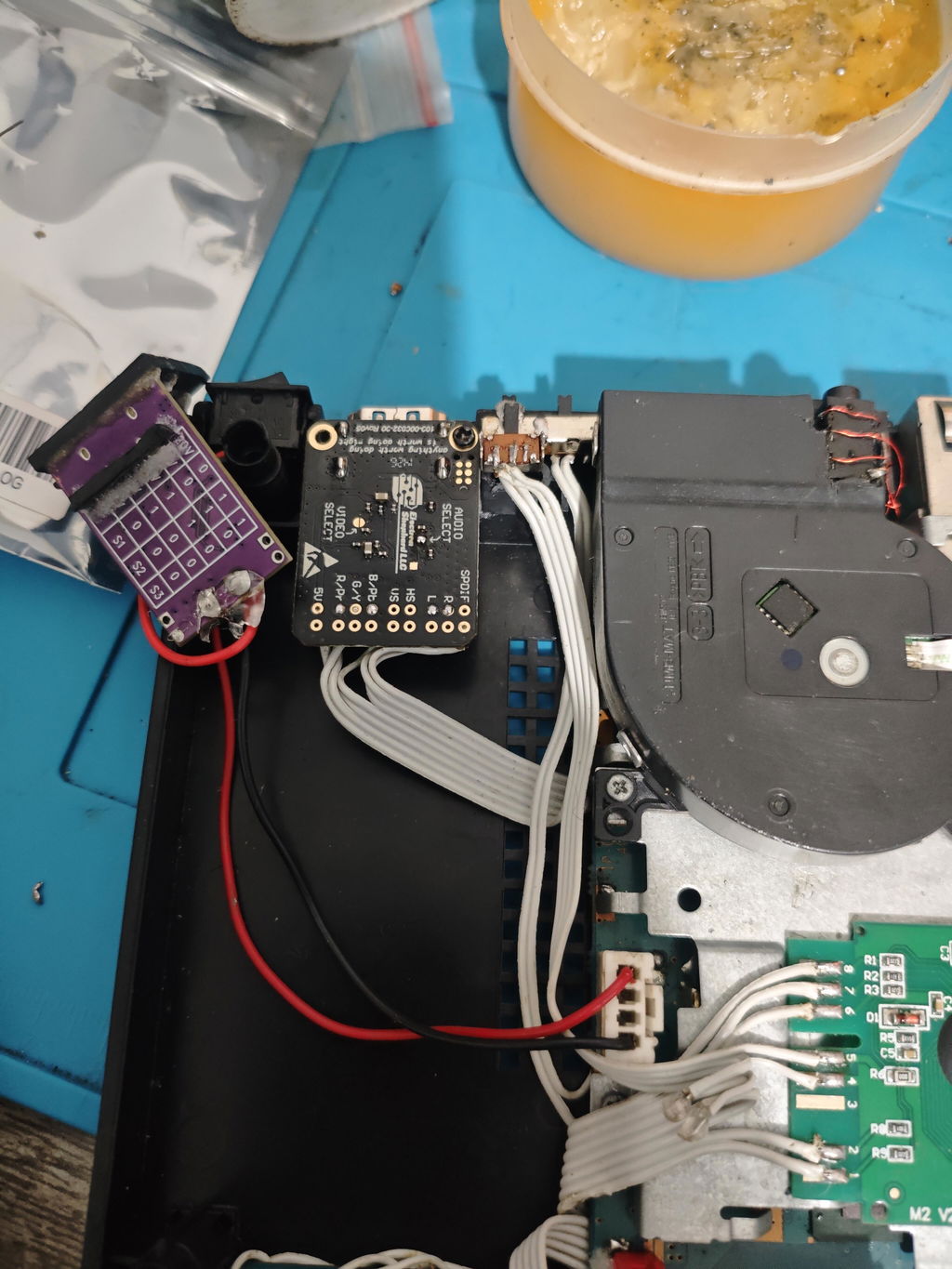

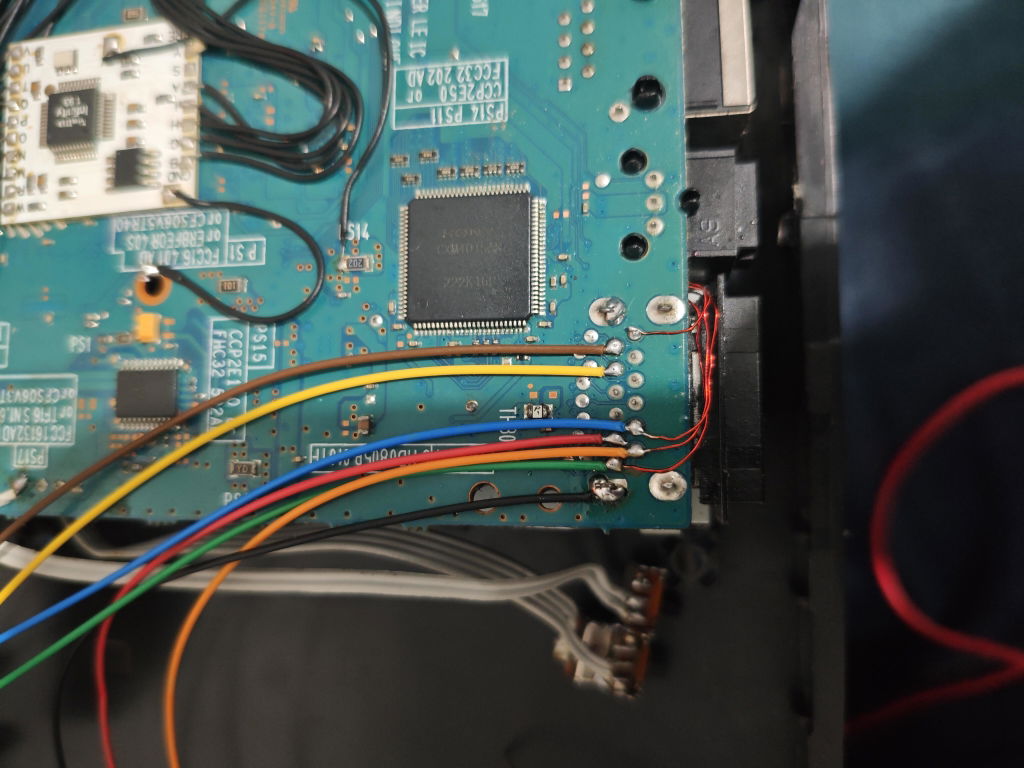

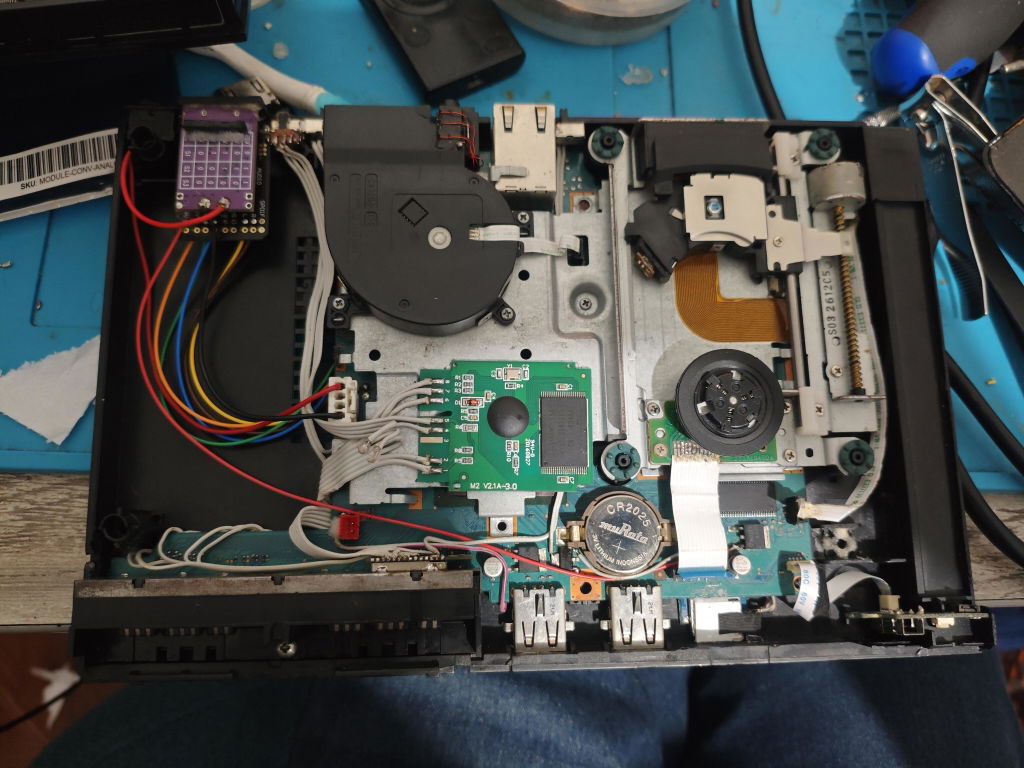

A
Anonymous
Fantastic

Fantastic product!

J
JP A.G.
PS2 Phat Install went perfect !

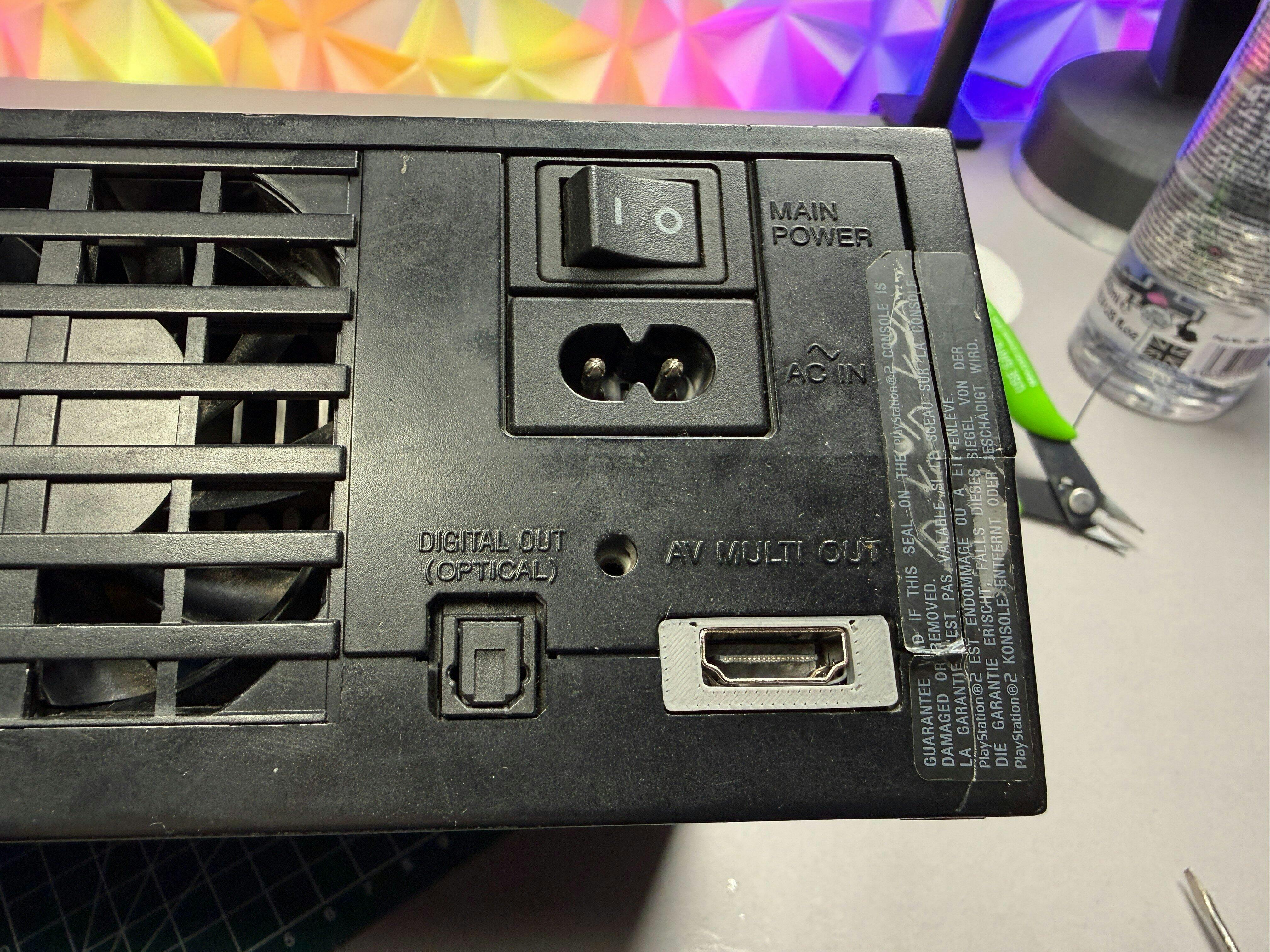

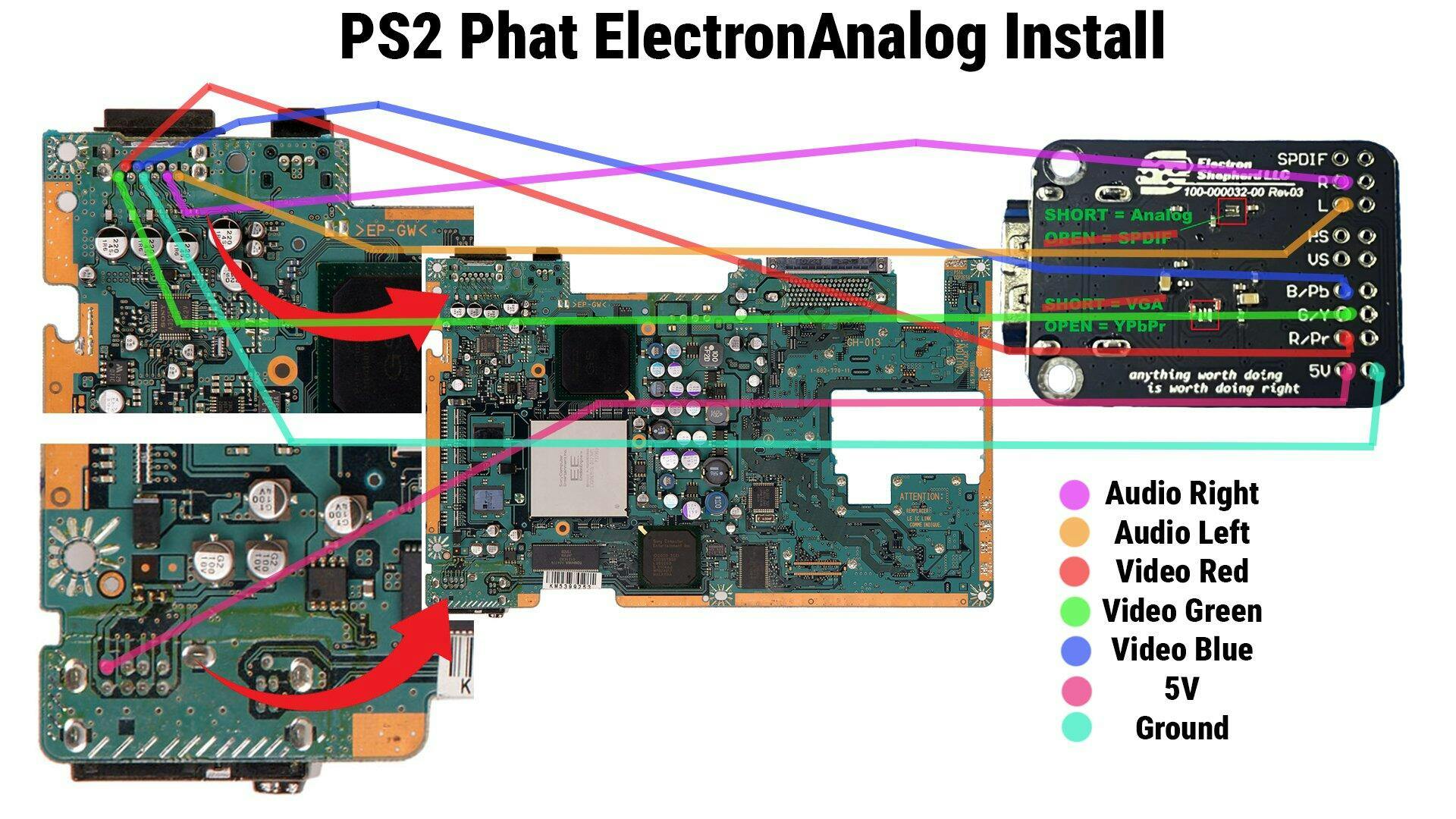

Easy install, and I made a little diagram to help others.
