This is the new name for the GBS2HDMI! It is the same product!
The product you receive may have the old logo and name while that is still in stock, but they are identical.

Regular price
$39.99
Sale price
$39.99
Regular price
Sold out
Unit price
per

Lots in Stock!
Ships within 1-7 business days from date of purchase.

 Supply Voltage: 5V
Video Input:  RGBHS (VGA)
Audio Input: Analog
Video Output: HDMI
Latency: NONE!

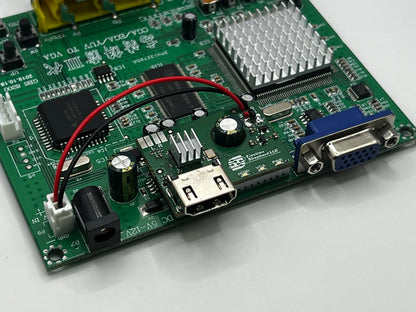

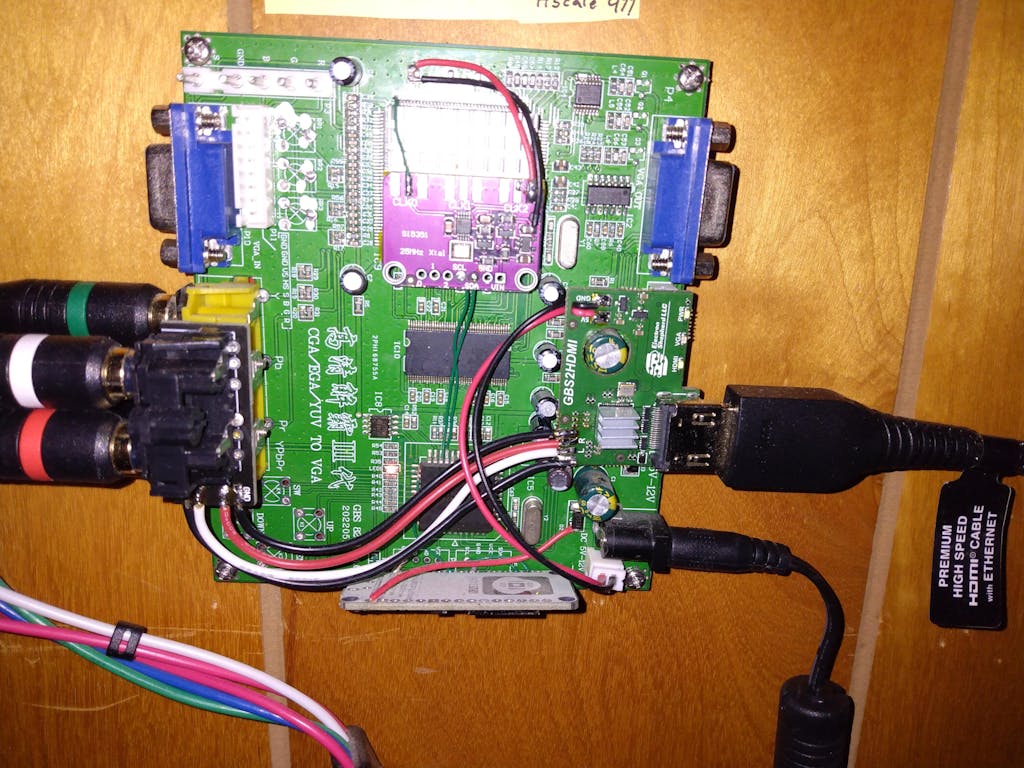

This module provides a tightly embedded HDMI output solution for your GBS8200. This is a perfect addition to a modded GBS8200 that is running GBS Control.

If you're not sure what the GBS8200 is, then check out this great video from Bob at RetroRGB that describes it in detail and provides installation instructions for GBS Control!

You must use a 5V, 3A power supply while using this module to ensure that your GBS8200 and the DigitalGBS are provided with adequate power.

What is included in this kit:

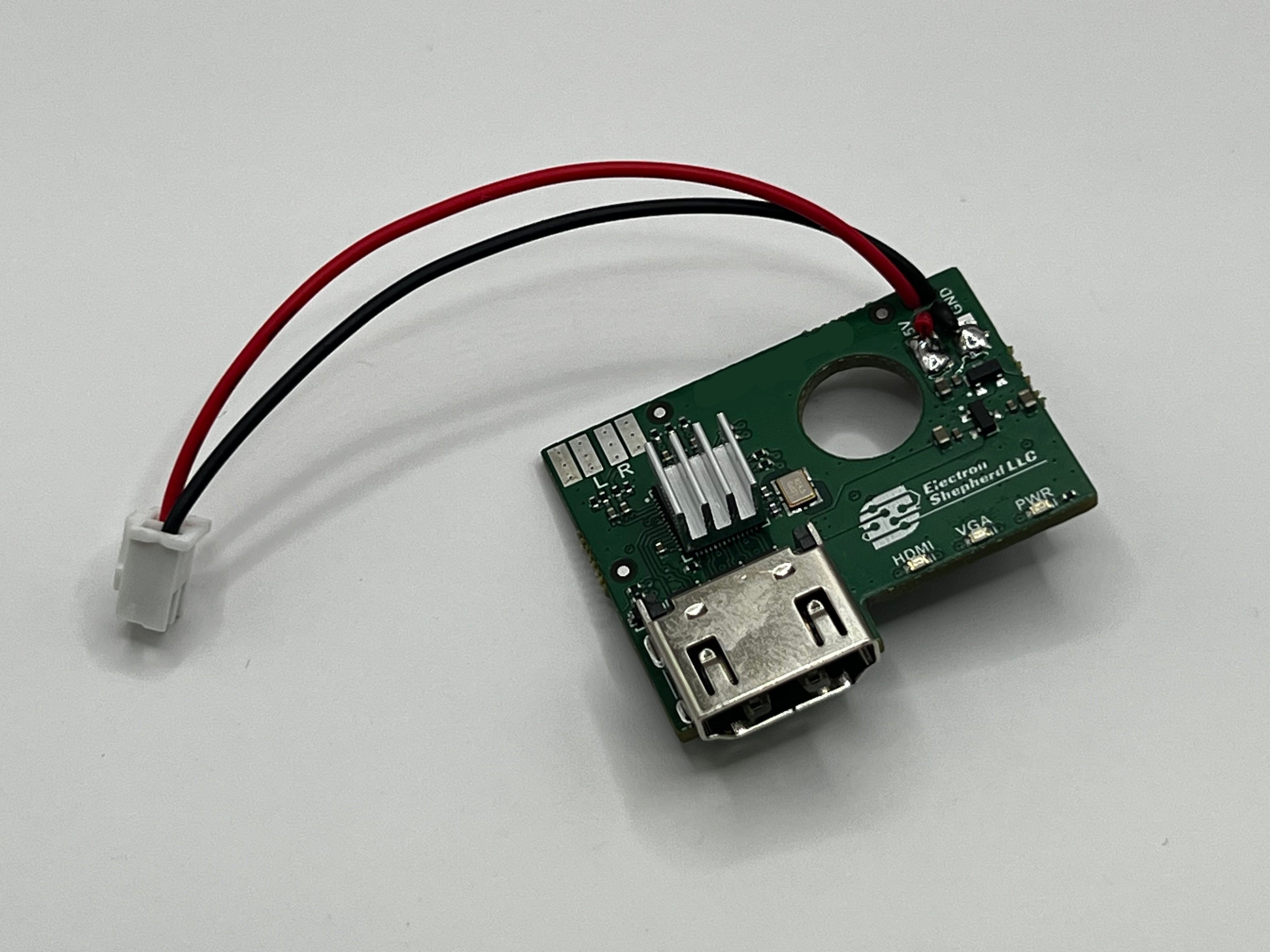

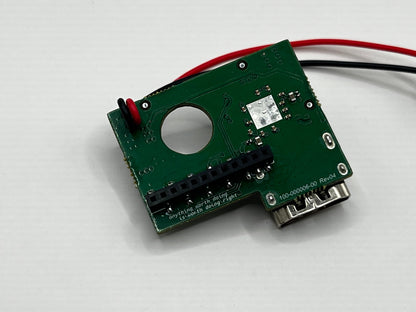

  • 1x DigitalGBS w/ Power Harness and Heat Sink

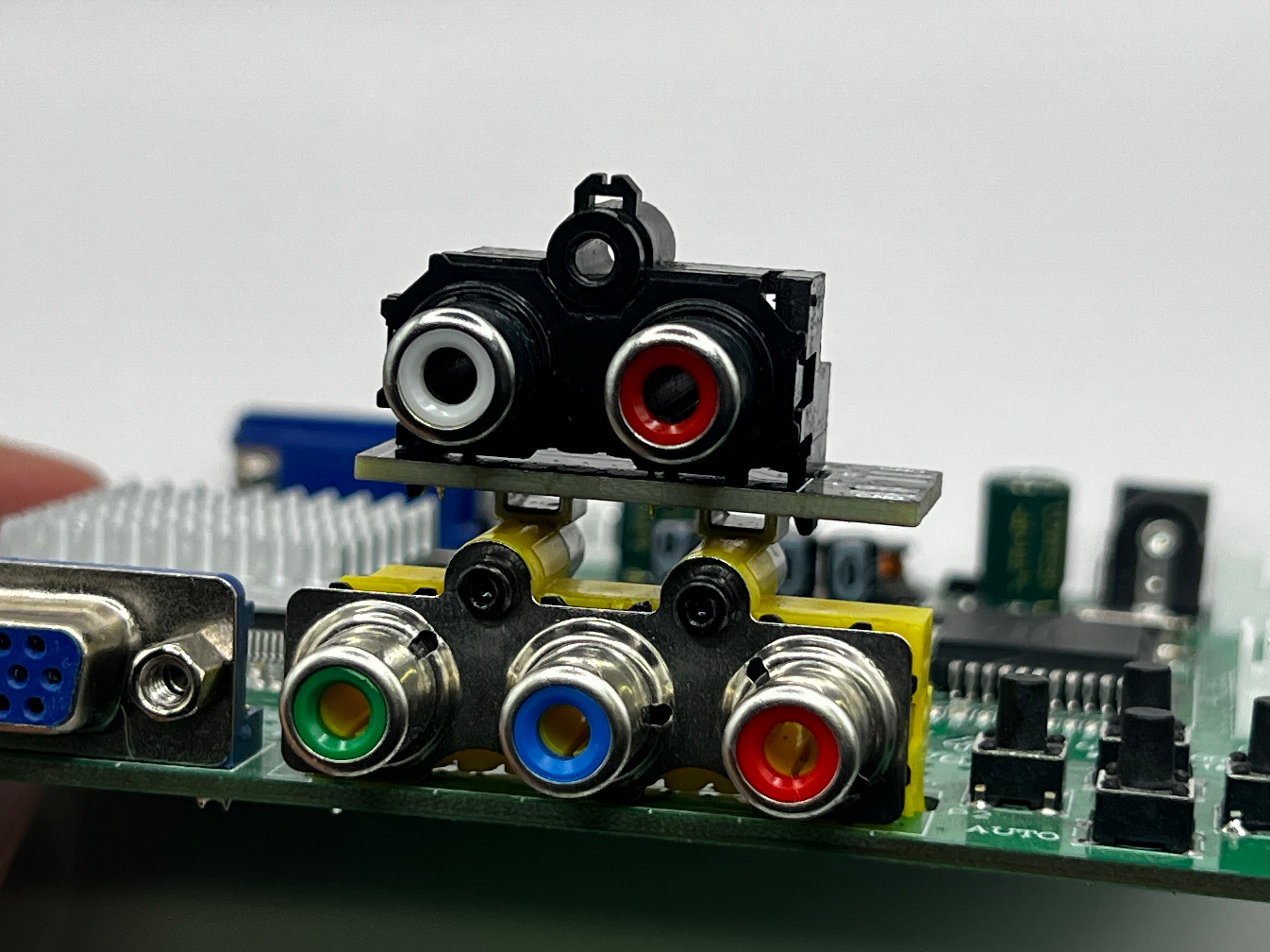

  • 1x Audio Jack Board w/ Screws
What you need to supply:
  • A high quality 5V, 3A power supply, such as the Triad WSU050-3000.
  • 22AWG wires to connect the audio jack board to the DigitalGBS



This tiny, power-packed module takes in a VGA signal from your GBS8200 and outputs an HDMI™ signal with an embedded analog audio.  This DigitalGBS module can accept any resolution from VGA to UXGA and does not provide any internal scaling of the image - all scaling and image processing is handling by your GBS8200.

This module accepts the following resolutions:

  • 480i/p
  • 576i/p
  • 720p25/30/50/60
  • 1080i50/60
  • 1080p24/25/30/50/60

Please be aware that these boards contain components that are sensitive to ESD strikes.  Be sure to handle these using proper ESD handling techniques.
