ElectronAnalog
ElectronAnalog
Latency: Less than 1ms

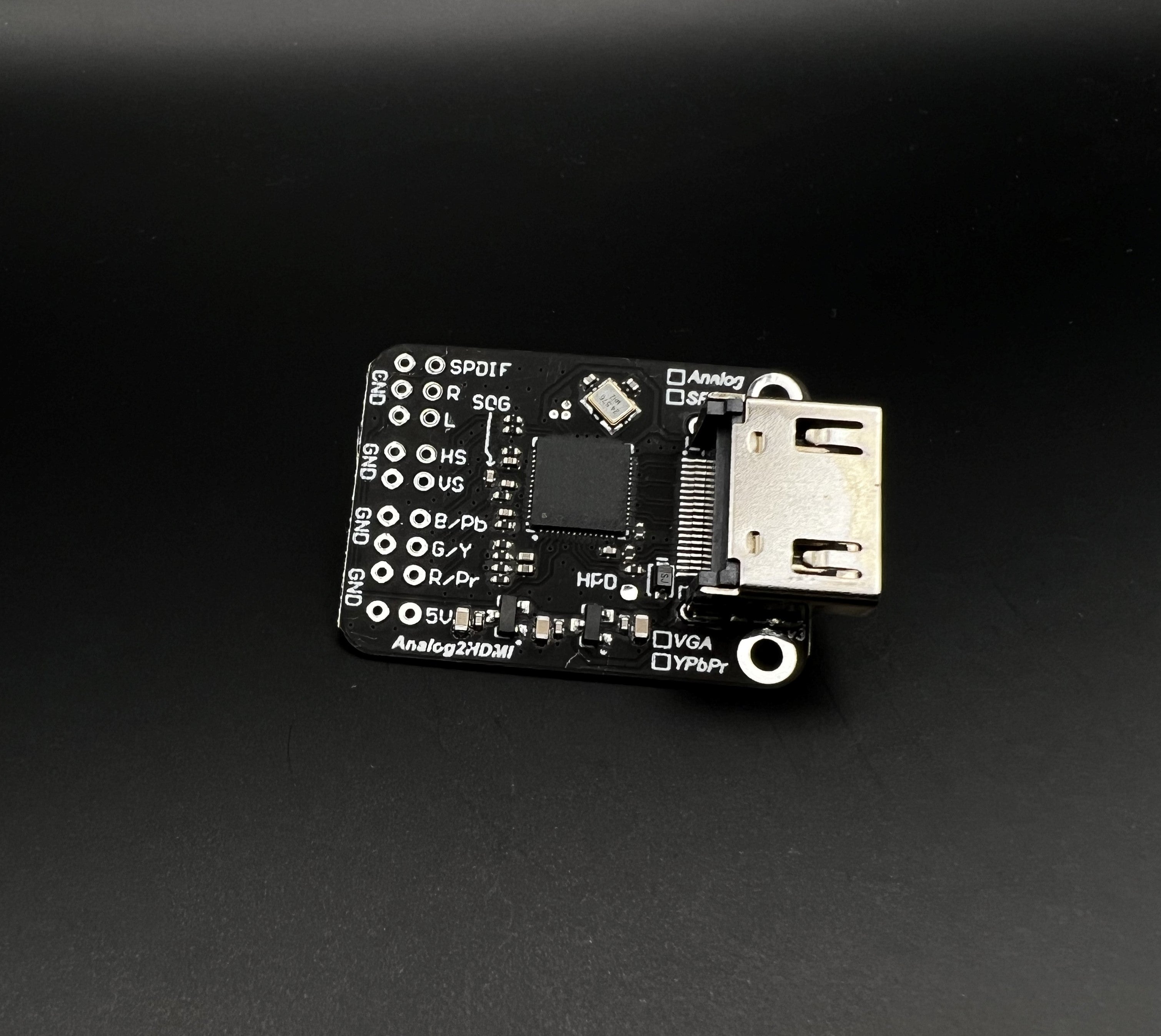

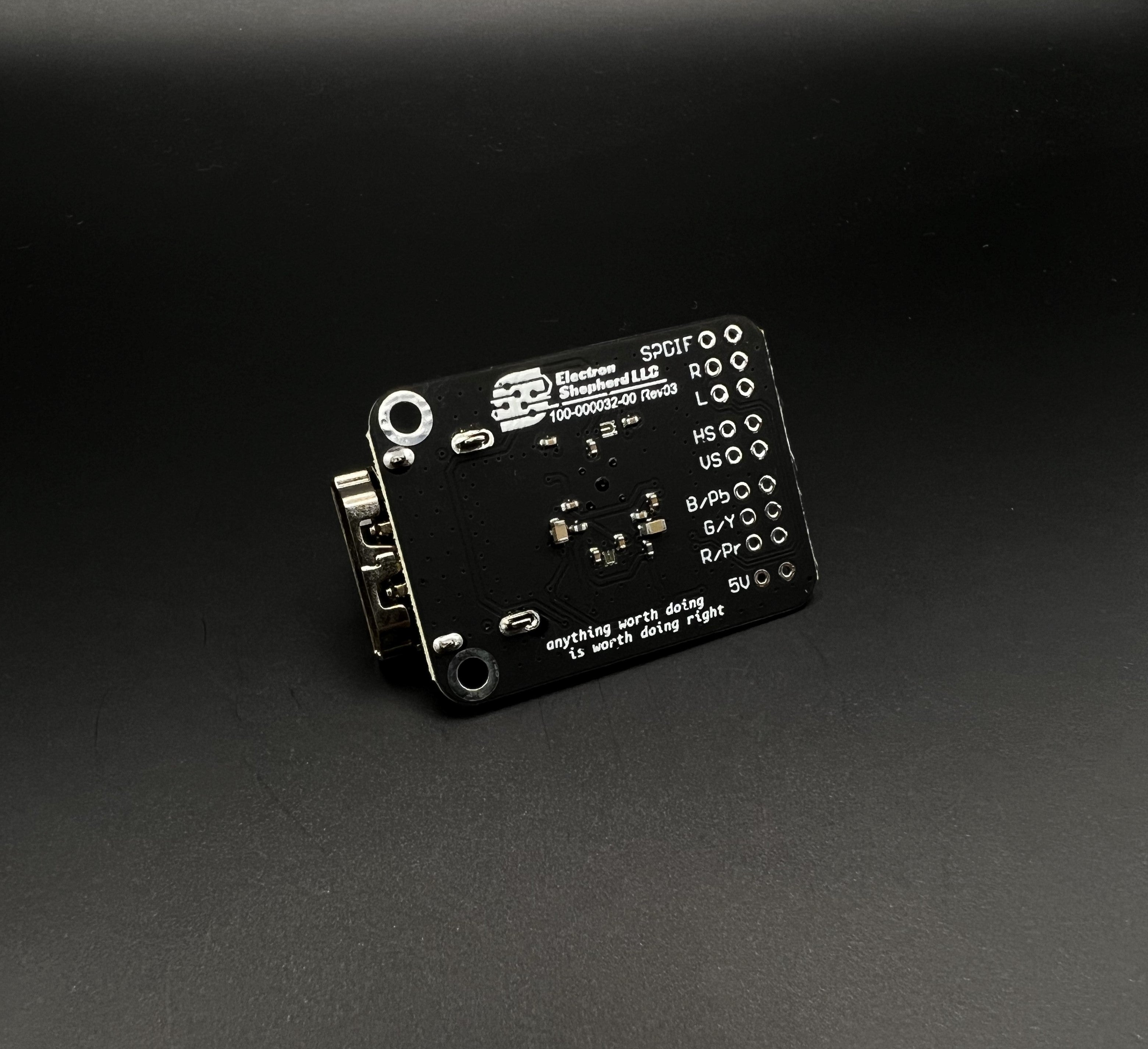

This tiny, power-packed module takes in a VGA or Component signal (depending on the version) and outputs an HDMI™ signal with an embedded analog or SPDIF audio front-end for use in your smallest of projects. This design is a higher quality, smaller, and more efficient version of the widely available analog-to-digital modules that are available online. If you are not happy with those modules, then you will absolutely be happy with these.
The VGA-input mode can accept any resolution from VGA to UXGA and does not provide any internal scaling of the image. The Component-input mode can accept any resolution video signal up to 1080p60 and does not provide any internal scaling of the image.
This board can take in either SPDIF or analog audio. The SPDIF audio format can be Dolby 5.1 Surround Sound and it is embedded over the video output for use with any surround sound system connected to your TV.
This device typically consumes <300mA in all use cases; however, you should test this design in your system before designing a specific regulator.
- Supports 480i/p, 576i/p, 720p25/30/50/60, 1080i50/60, 1080p24/25/30/50/60.
- Supports RGB graphics from VGA to UXGA
Please be aware that these boards contain components that are sensitive to ESD strikes. Be sure to handle these using proper ESD handling techniques.
All company, brand, and product names are trademarks or registered trademarks of their respective holders. Electron Shepherd LLC has no affiliation to, is not associated or sponsored by, and has no express rights to third-party trademarks.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Latency
We used a Time Sleuth to measure the latency that this module adds during its analog-to-digital conversion.
All measurements were done with a 7" Loncevon HDMI monitor with the Time Sleuth output resolution set to 1080p @ 60Hz.

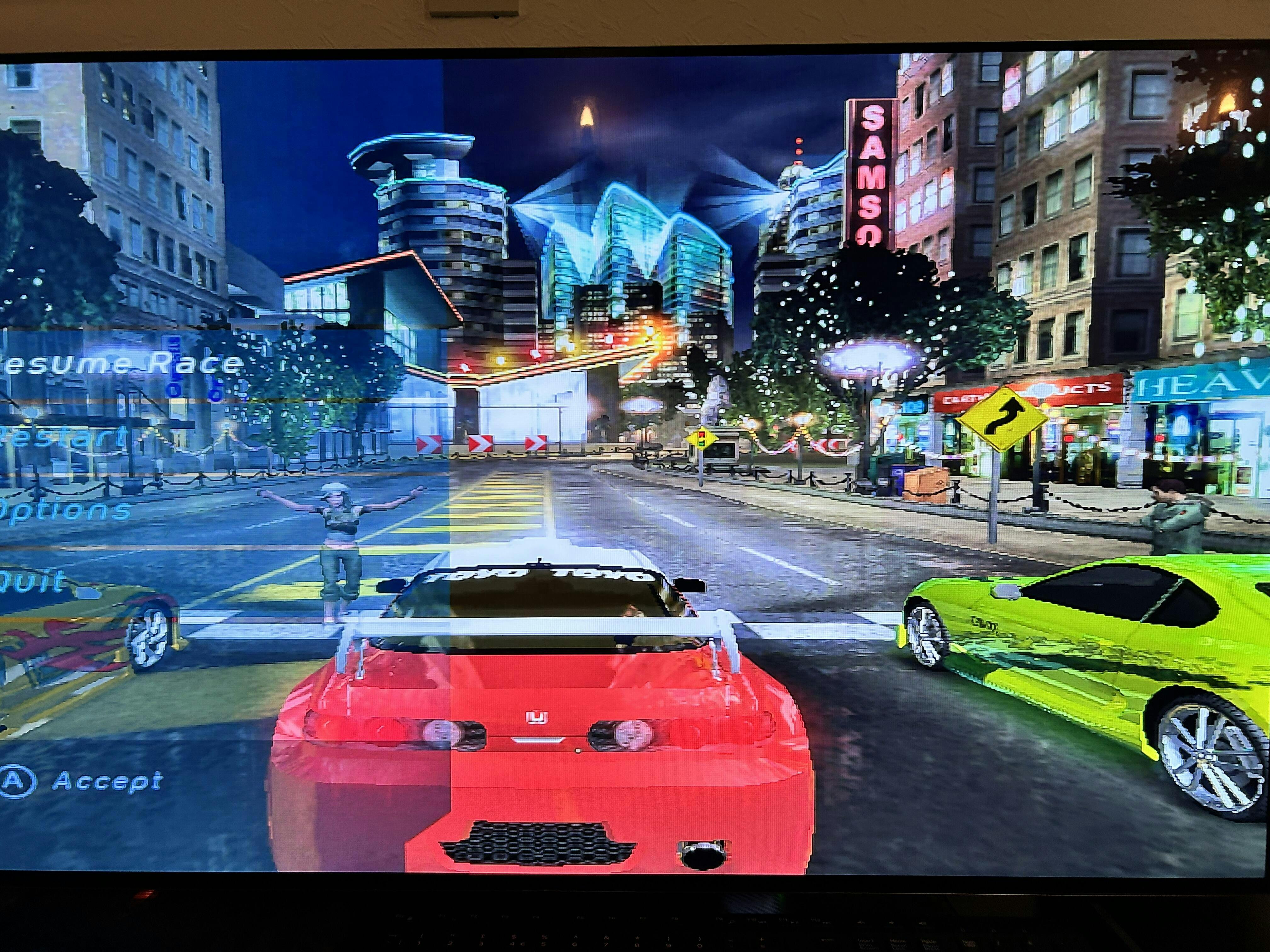

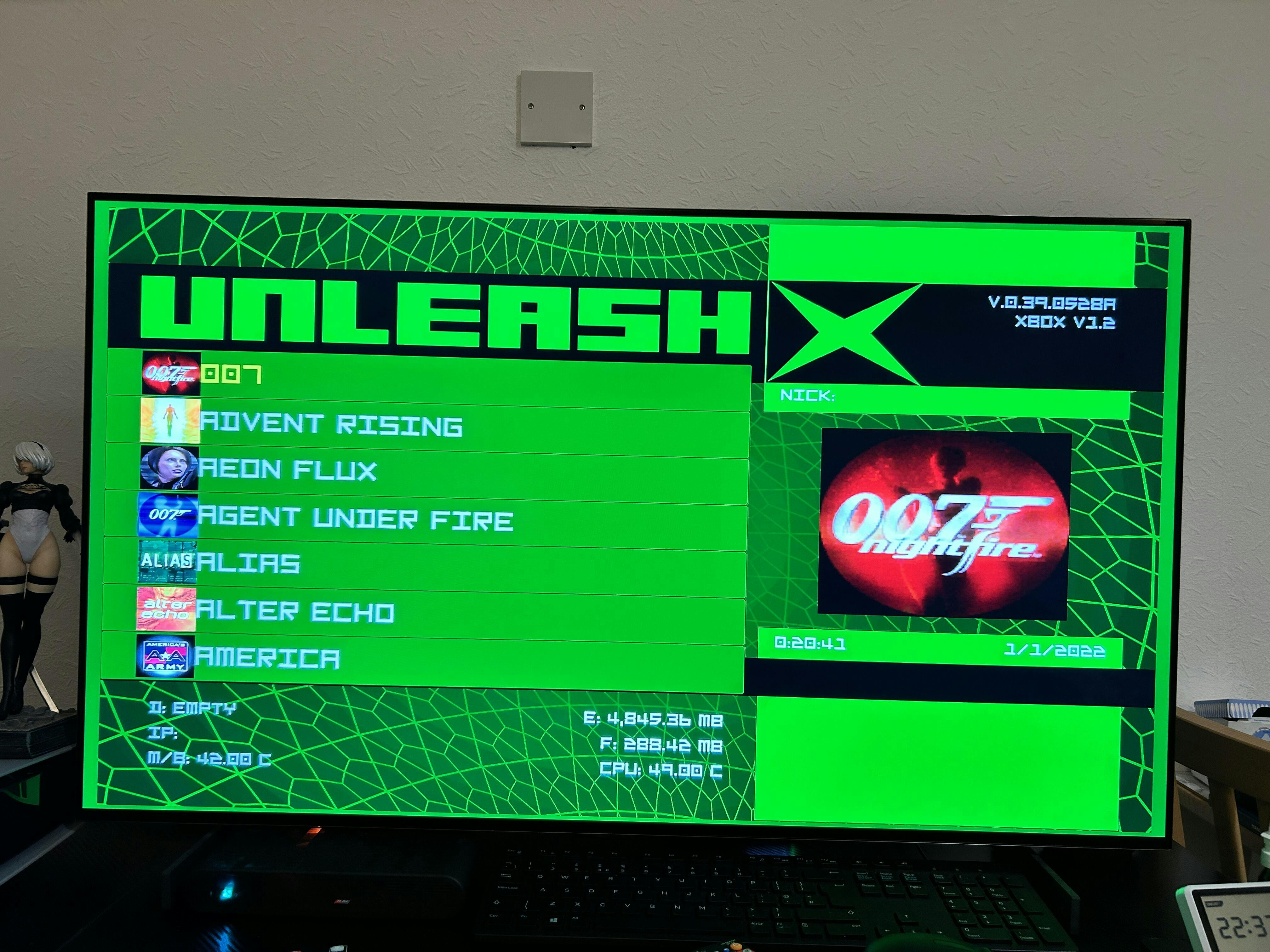

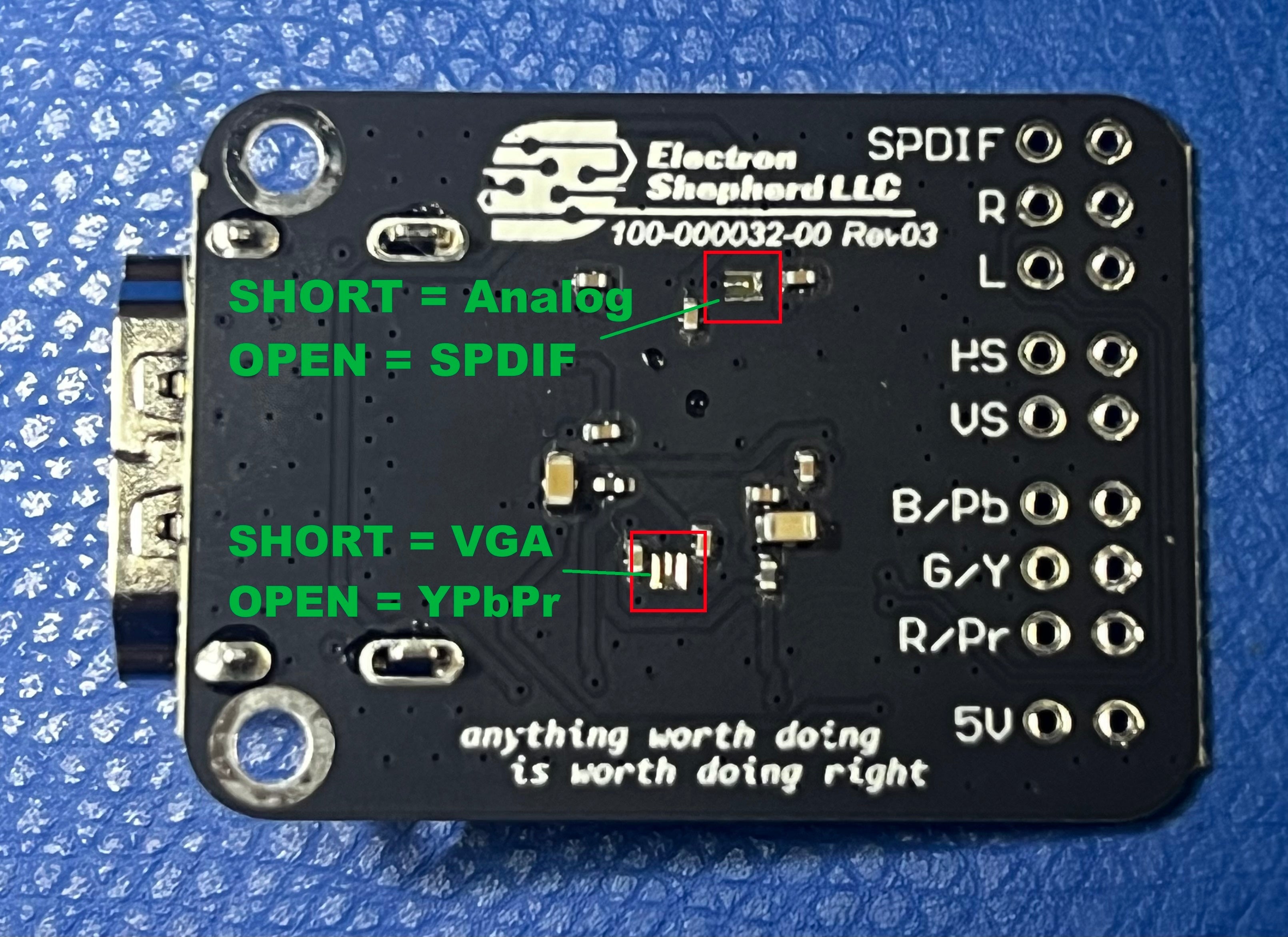

The ElectronAnalog provides great video quality for a simple Analog to Digital converter. I purchased a few of these to implement HDMI output on some of my "retro" consoles(PS2,XBOX,Wii,etc.) All the points are properly labeled, making it easy to find where to solder. Configuring between YPbPr/RGB or SPDIF/Analog is easy as well, simply by bridging jumpers. Overall a great product, which I will be ordering more of.

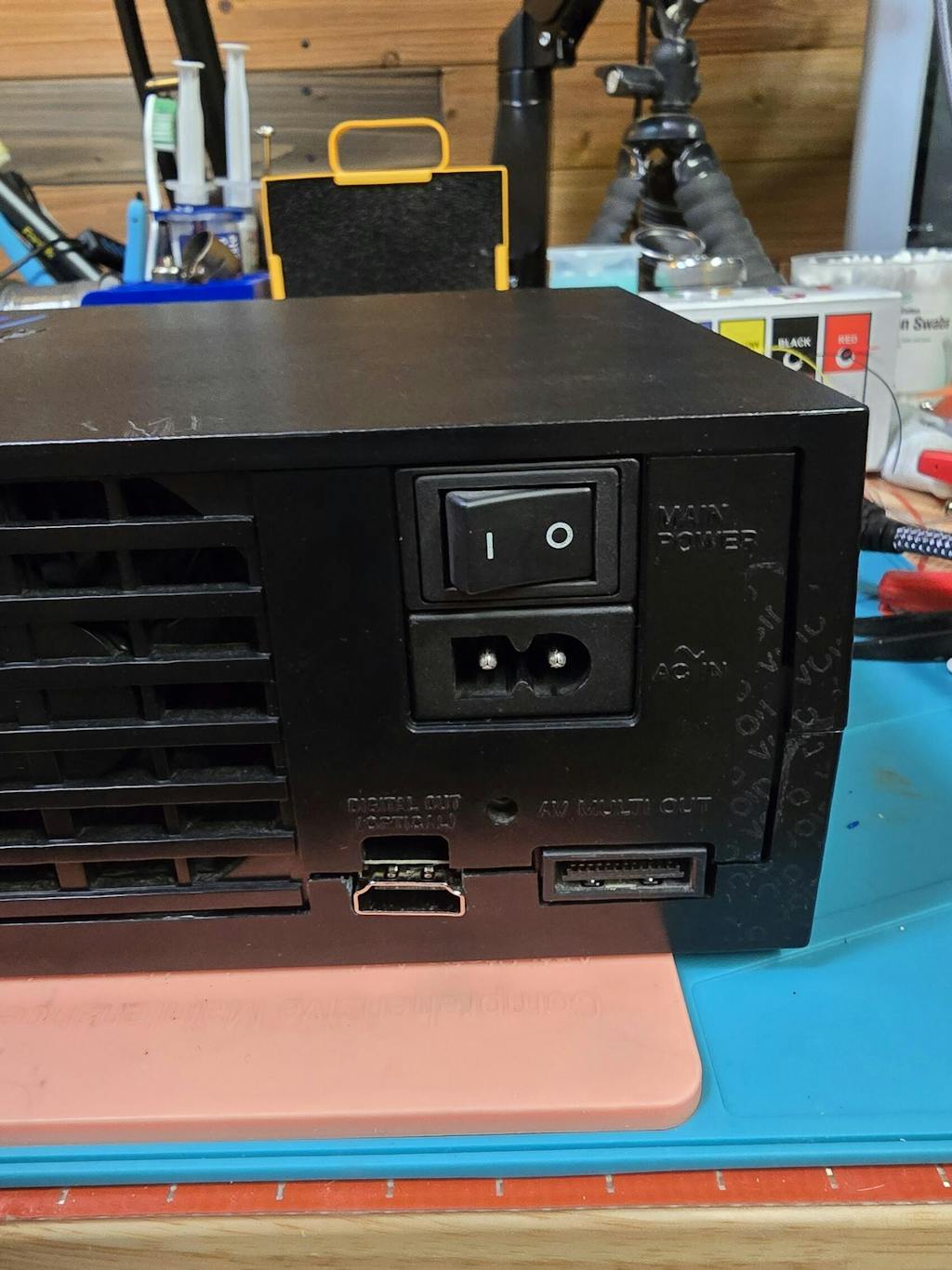

This thing is great. The AV port on my old PS2 fat was completely ruined, and now the console is usable again with the help of the electronanalog. Super straightforward to connect :)
Hello, I'm very satisfied, but it's a shame that I had to pay customs fees again and therefore had to pick it up.
I had actually already paid customs fees. I order from many other countries and I didn't have this problem there.
I fitted my first unit yesterday and was thrilled to see the picture this gives with my professional installation service in the UK. Certainly worth the effort and the price.
Great kit, excellent support when I made a stupid mistake. Likely going to buy several more to convert more consoles.
I saw the PS2 adapter was sold out so I got this instead. Works great. I had an old component video switchbox and I wired this right into it. I used a micro-USB charger cable and cut the micro end off to create a USB power cable for it. I only needed it for the component video, but now I'm tempted to add a vga connector, orange rca connecter, and two toggle switches to get the full capability out of this. I have an old vga to hdmi box setup for my Dramcast, but this would work better.
Can always expect quality with Electron Shepherd products that don’t break the bank. Keep up the good work dudes!
Love the quality!
