ElectronNMB

Name: ElectronNMB
Brand: Electron Shepherd LLC
SKU: MODULE-THRU-NMB
Price: 41.99 USD
Availability: InStock

$41.99 USD

Product variants

This is the perfect solution for retro Nintendo console enthusiasts! Nothing fancy, just pure analog video output allowing multiple connected displays or video capture cards to be connected at once!

In stock, ready to ship

ElectronNMB

$41.99 USD

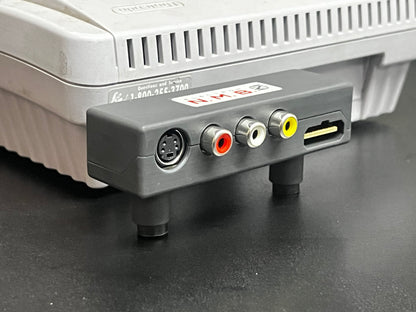

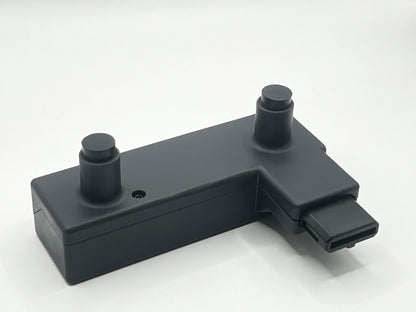

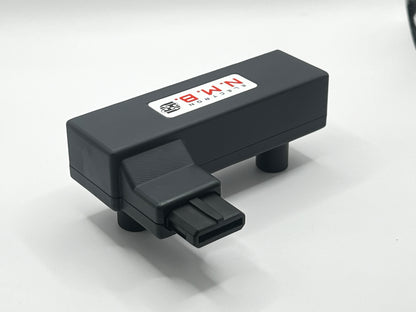

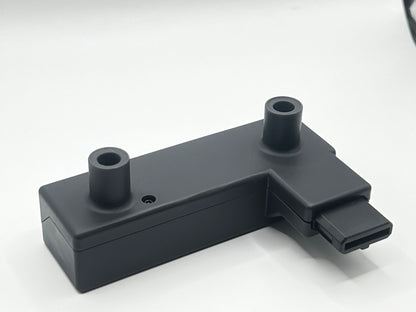

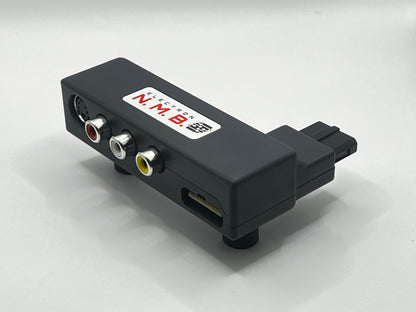

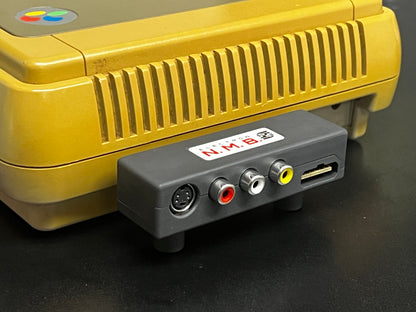

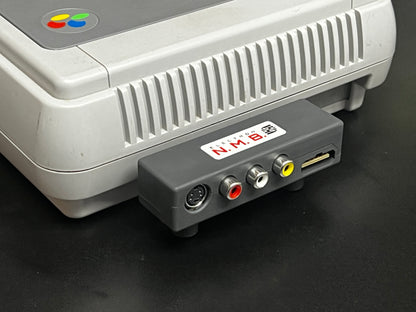

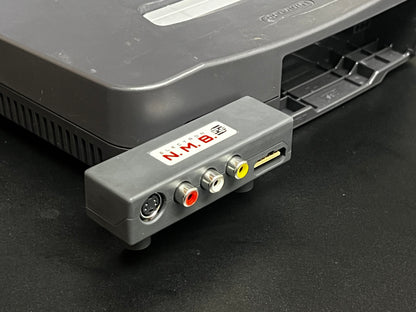

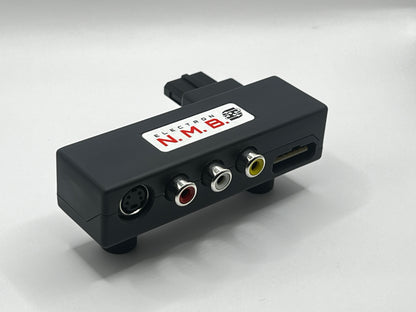

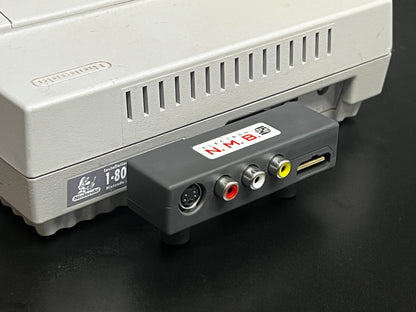

The "NMB" in ElectronNMB stands for Nintendo Multiout Breakout because that is exactly what it is! This small module attaches to the back of your SNES, N64, Famicom, and SNES Jr. and allows for simultaneous analog video output to the Composite, SNES, and/or the multiout connector using your existing high quality analog cables.

In order to get the highest quality output from your console, it is recommended to mate the ElectronNMB with high quality analog video cables to avoid video quality loss.

Features

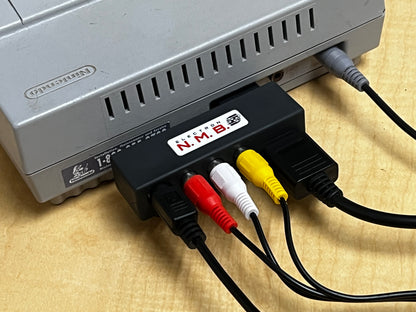

Safely connect to any and all of the output connectors on the module at the same time
Connect to multiple displays or capture cards or both at the same time without any lag between them.
Straight pass-through of the video without any processing, filtering, or scaling.

Composite (CVBS) video and analog audio are available from all of the consoles, but not all consoles are capable of outputting S-Video and RGB video:

SNES: CVBS, S-Video, and RGB
SNES Mini: CVBS (achieve S-Video and RGB w/ Voultar's SNESRGB Kit)
Famicom: CVBS
N64: CVBS and S-Video (achieve RGB w/ Voultar's N64RGB Kit)

Technical Specifications

Video Input: RGBs, CVBS, and S-Video (depending on console)
Audio Input: Analog
Video Output:RGBs, CVBS, and S-Video (depending on console)
Audio Output: Analog
Compatibility: NTSC and PAL
Consoles: SNES, SNES Mini, N64, Famicom
Latency:LAG FREE!!

What's Included

ElectronNMB Module
2x rubber feet for use with a SNES Mini

All company, brand, and product names are trademarks or registered trademarks of their respective holders. Electron Shepherd LLC has no affiliation to, is not associated or sponsored by, and has no express rights to third-party trademarks.

Quality Comparison

Videos

Electron Shepherd has no affiliation with the following creators. These videos were linked because they showcase the capabilities of this product.

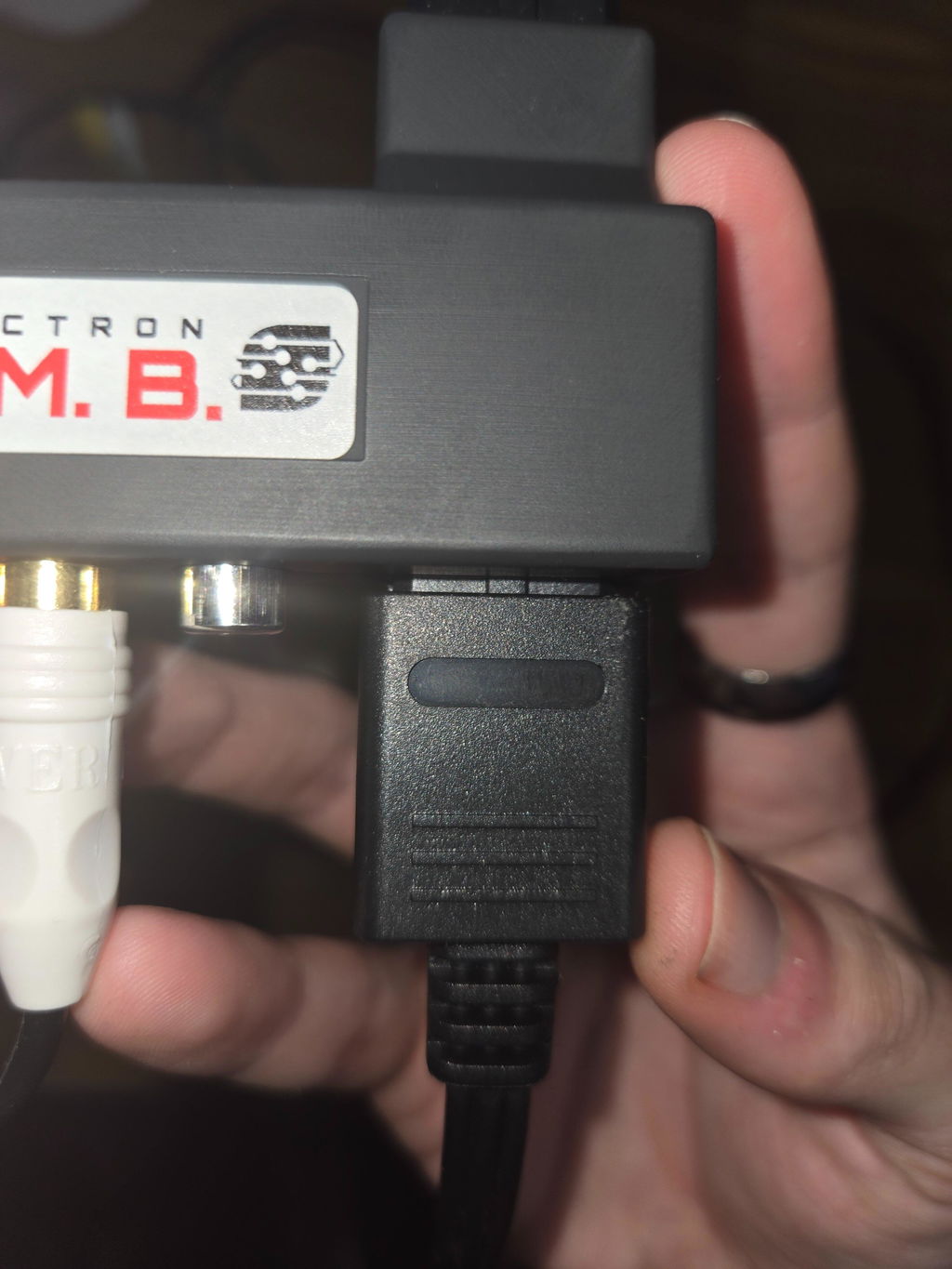

Works and fits perfect. I am able to play on my CRT with a separate output to a capture card.

Perfect

Do exactly what i want. I can use a RGB scart csync cable and extravt the original signal to stream at the same time.

Great product!

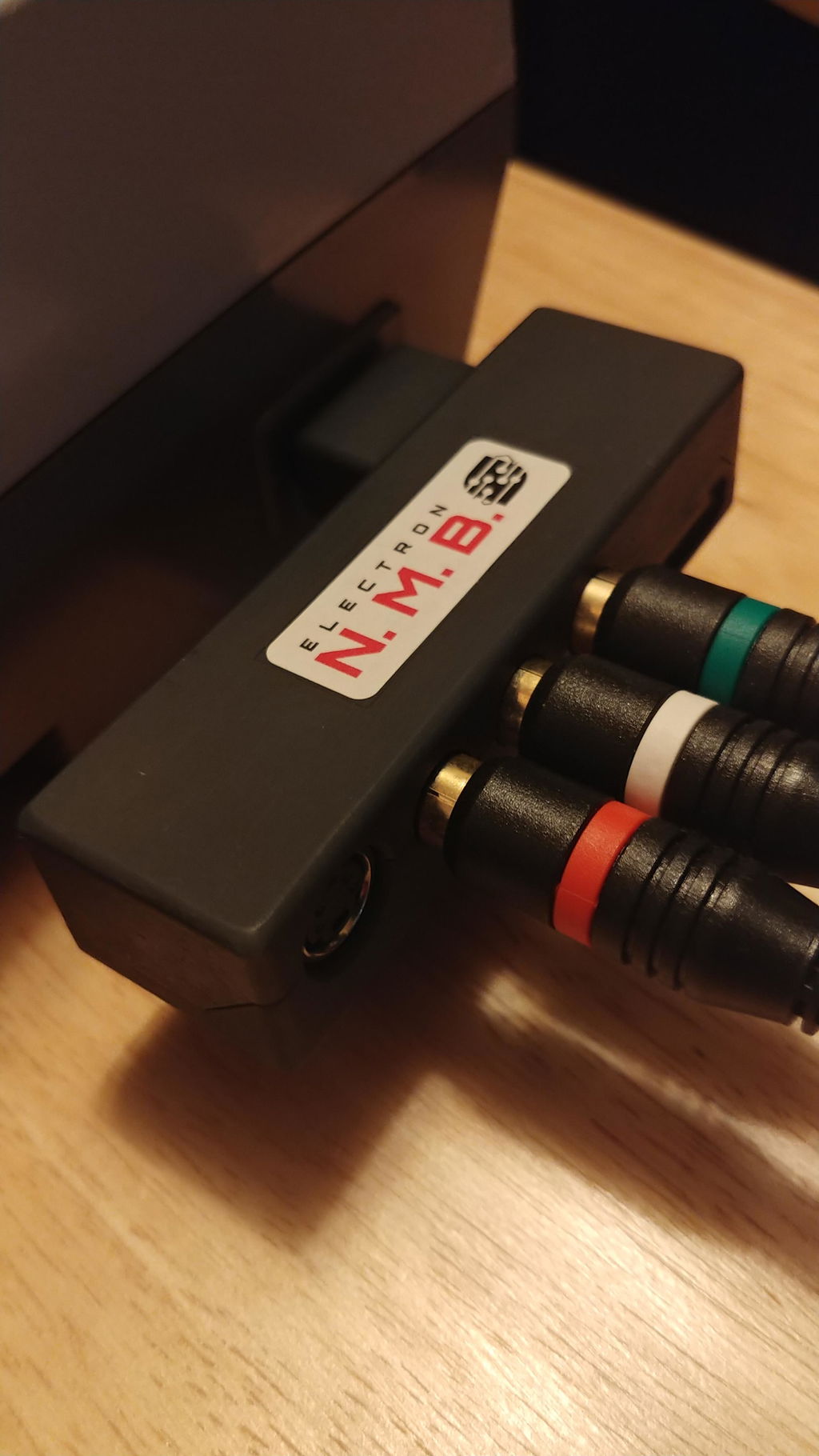

This breakout box works perfectly, especially for multi-monitor setups. It also doesn't interfere with any other connectors on the SNES due to its clever design.
The shop is very friendly and professional. Six stars!

ElectronNMB

Guys this is hecka cool. Helps split my output for CRT and stream capture card

Great!

I use it because I don't have any sound with my RAD2X on my N64 PAL Fra RGB modded when I play with NTSC games.
It works wonderfully!
Loud music with F-Zero X!

Awesome product if it’s what you need!

you may not think you need this, but if you know you do the ElectronNMB Works incredibly well! Flawless output from all the classic consoles (if they’re modded for RGB/S-Video, of course). Can’t recommend enough!

good with room for improvement

Good product with room for improvement. I am a previous customer.

Great product

Great product and shipped very fast!
