This is the perfect solution for retro Nintendo console enthusiasts! Nothing fancy, just pure analog video output allowing multiple connected displays or video capture cards to be connected at once!

In stock, ready to ship

ElectronNMB

$41.99 USD

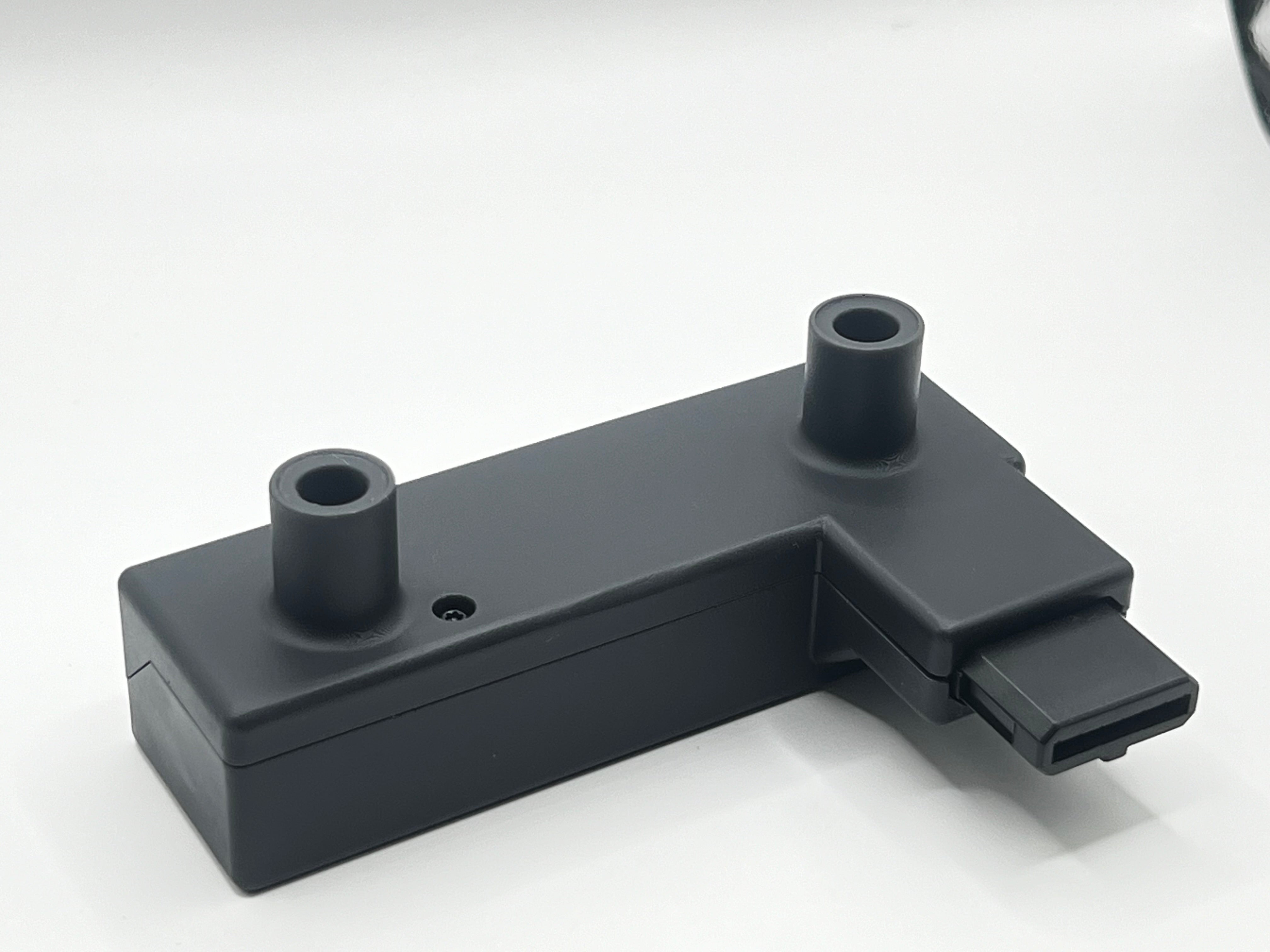

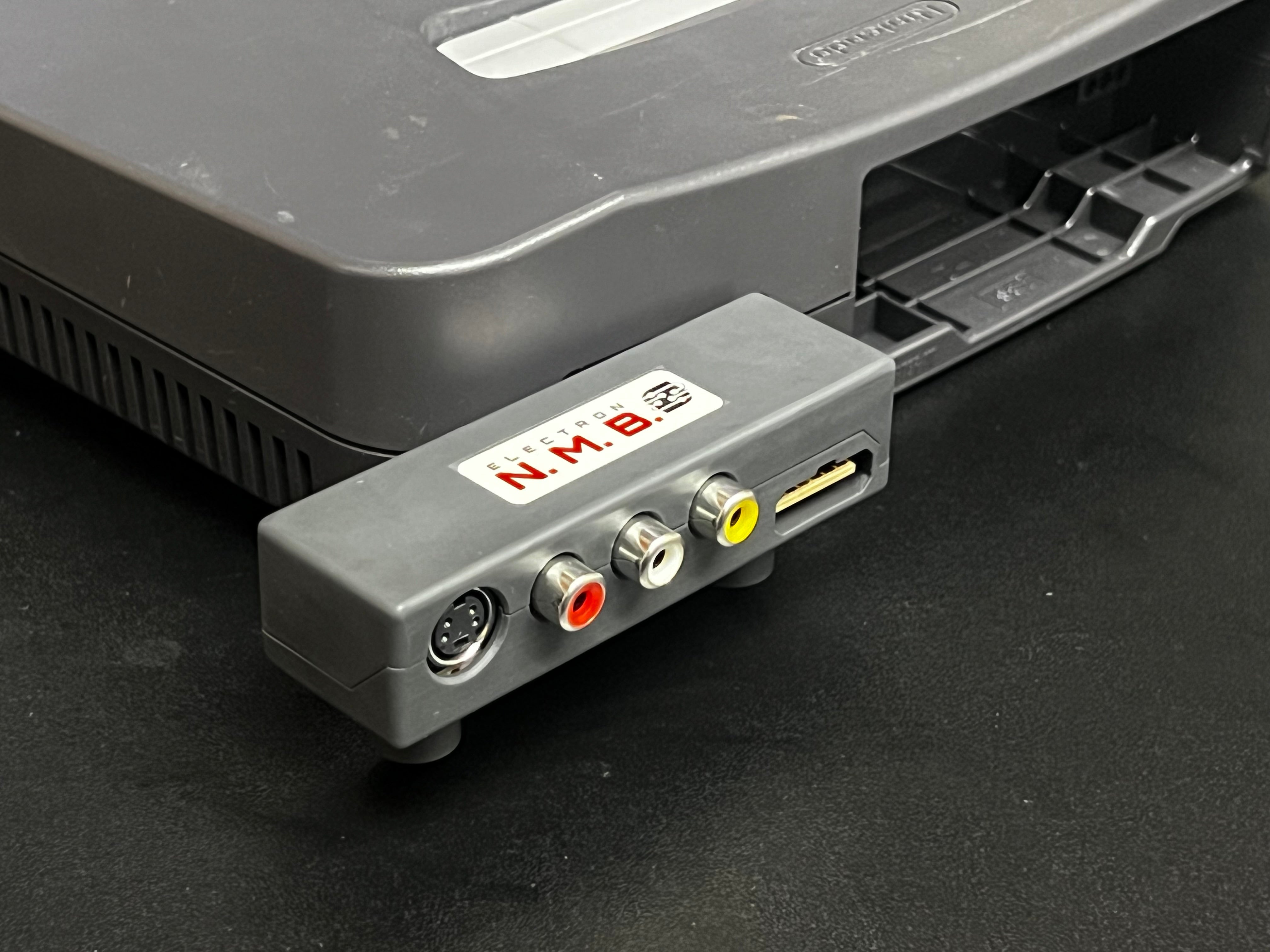

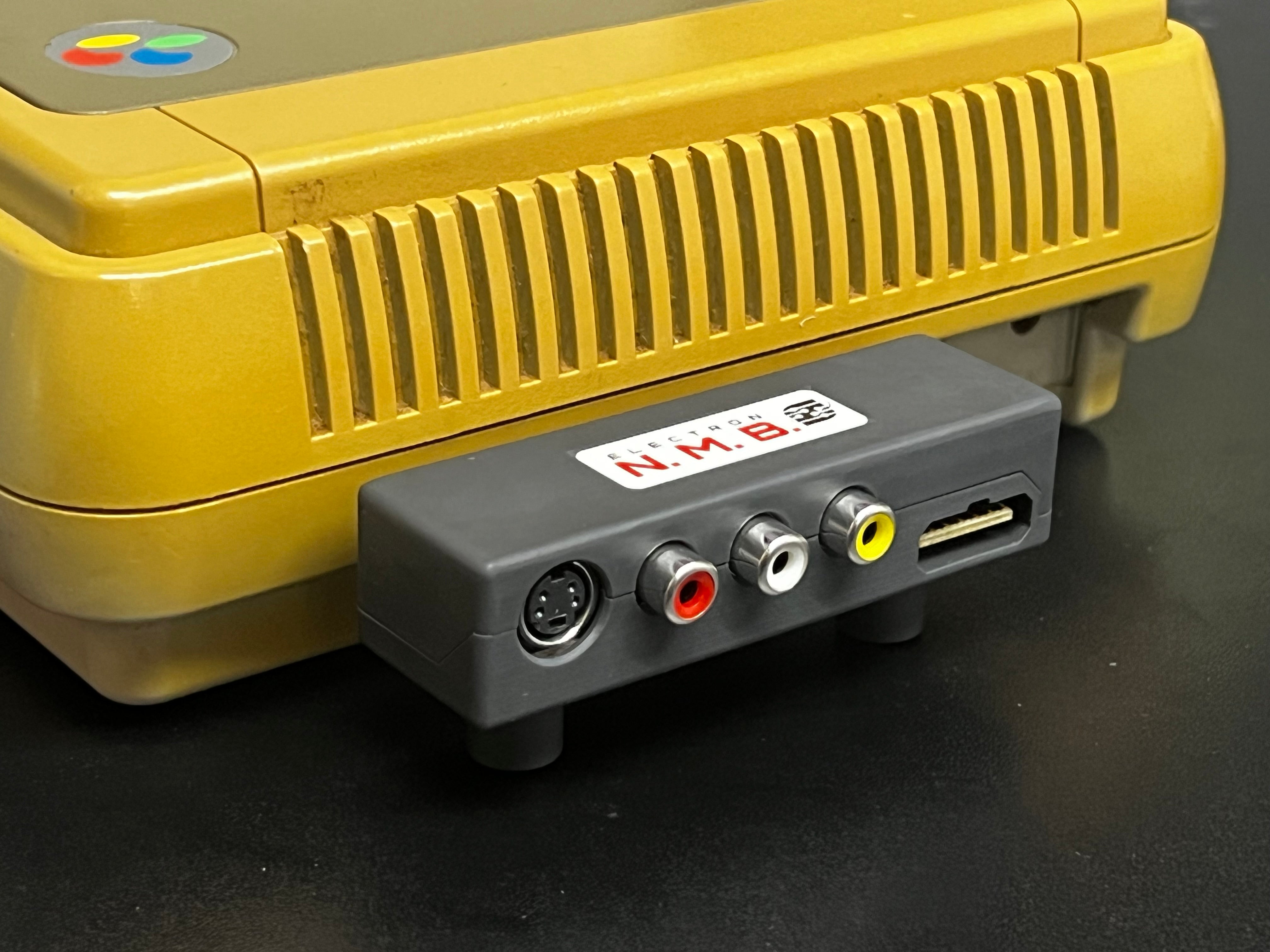

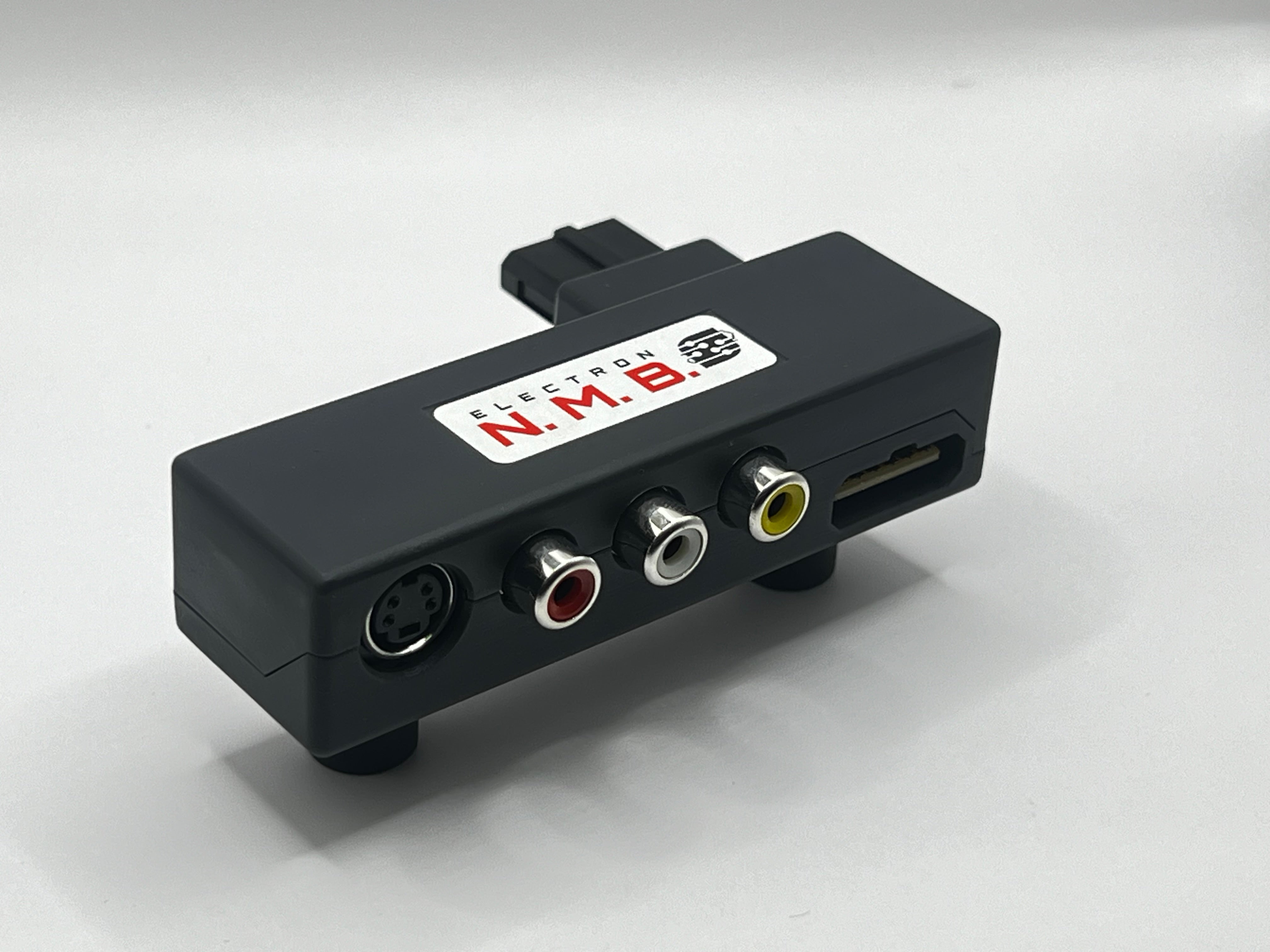

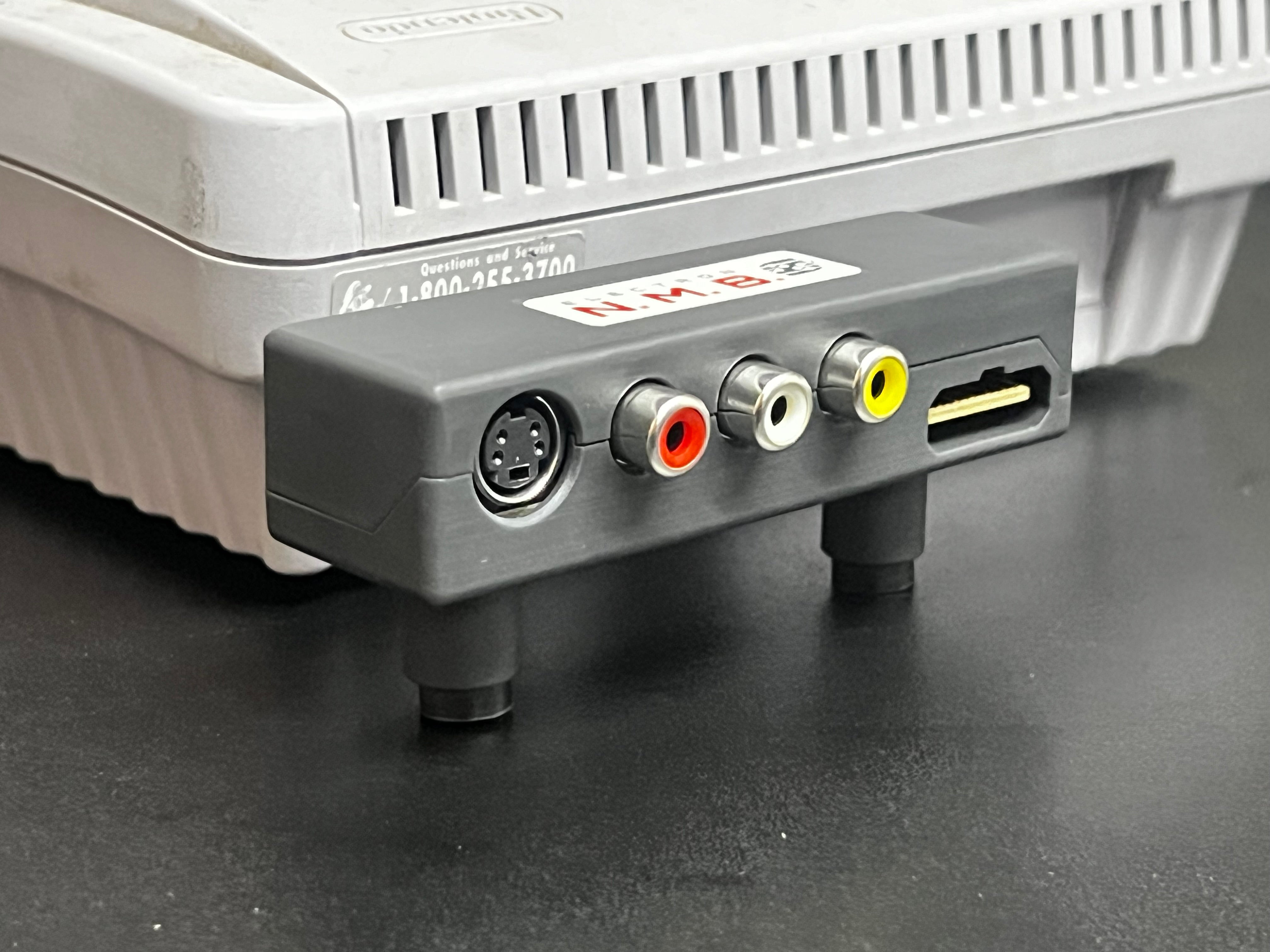

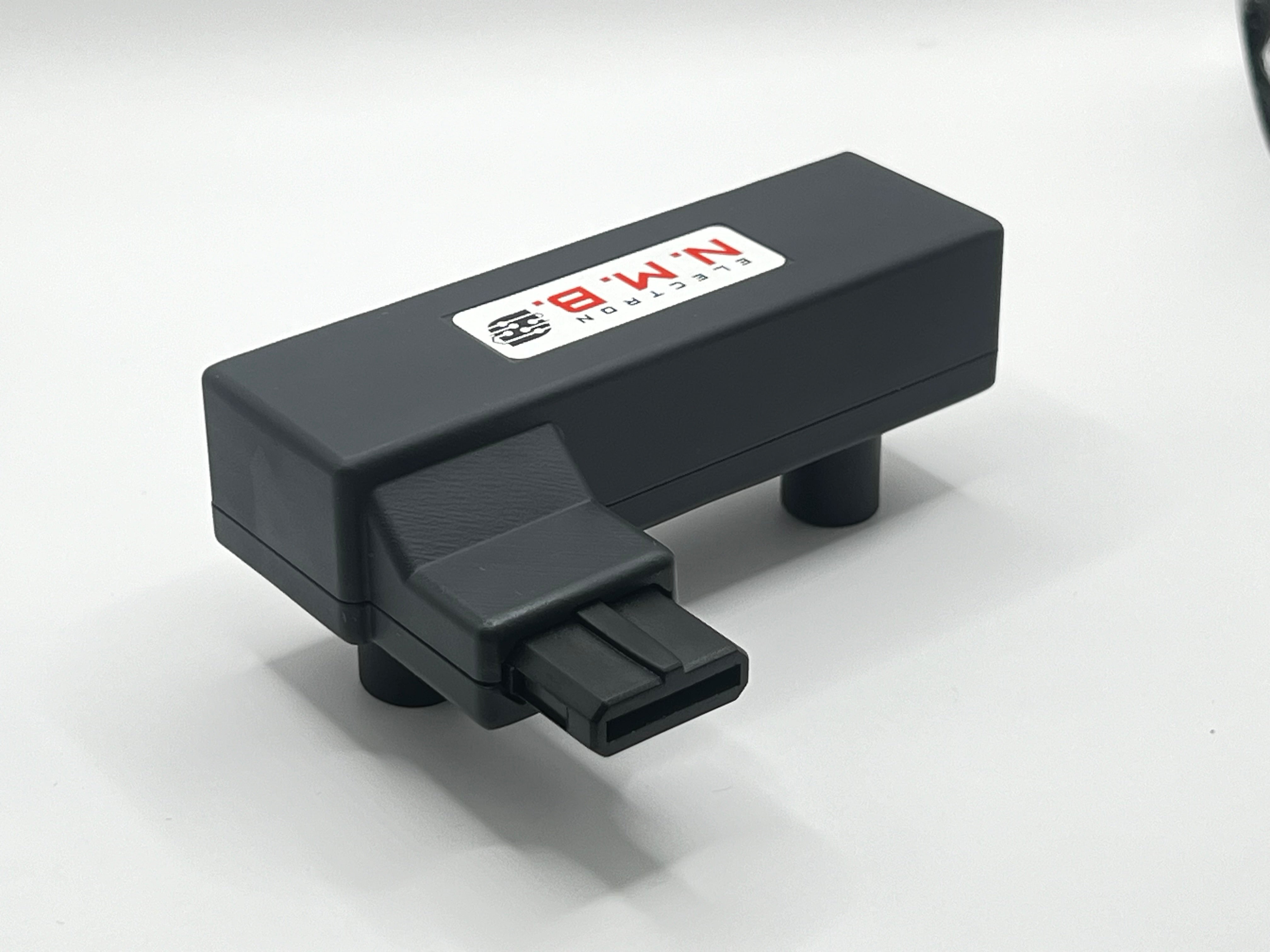

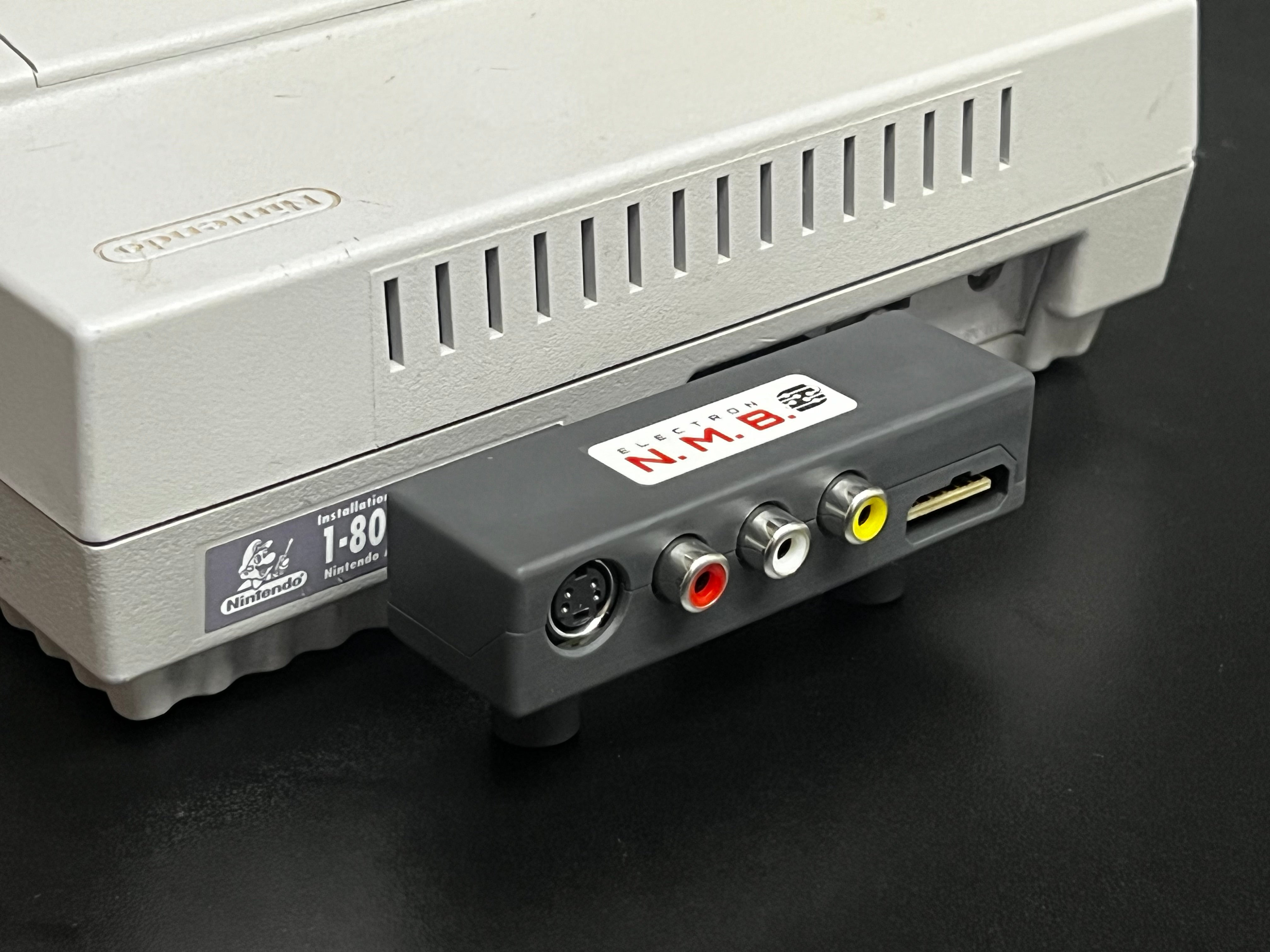

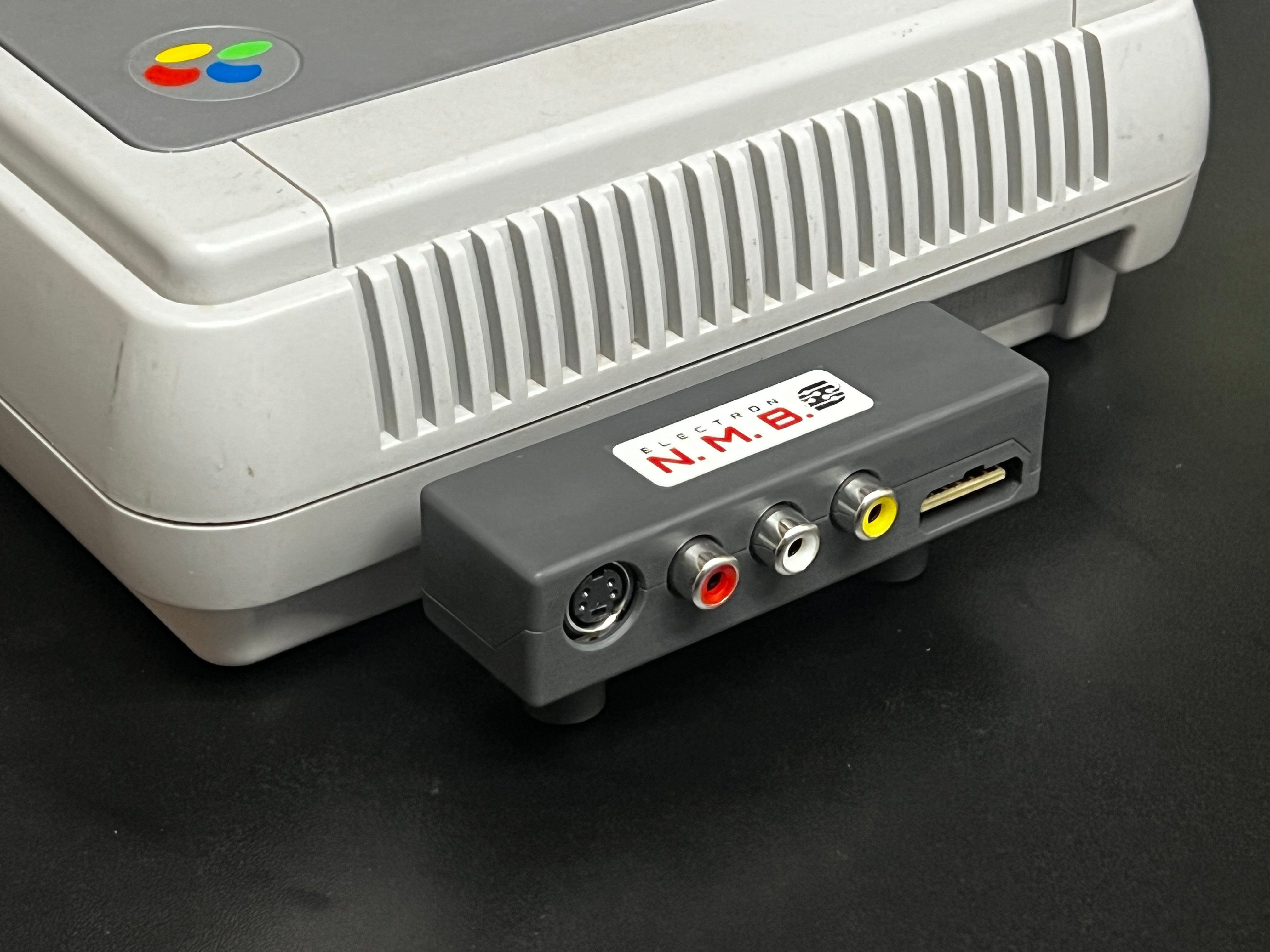

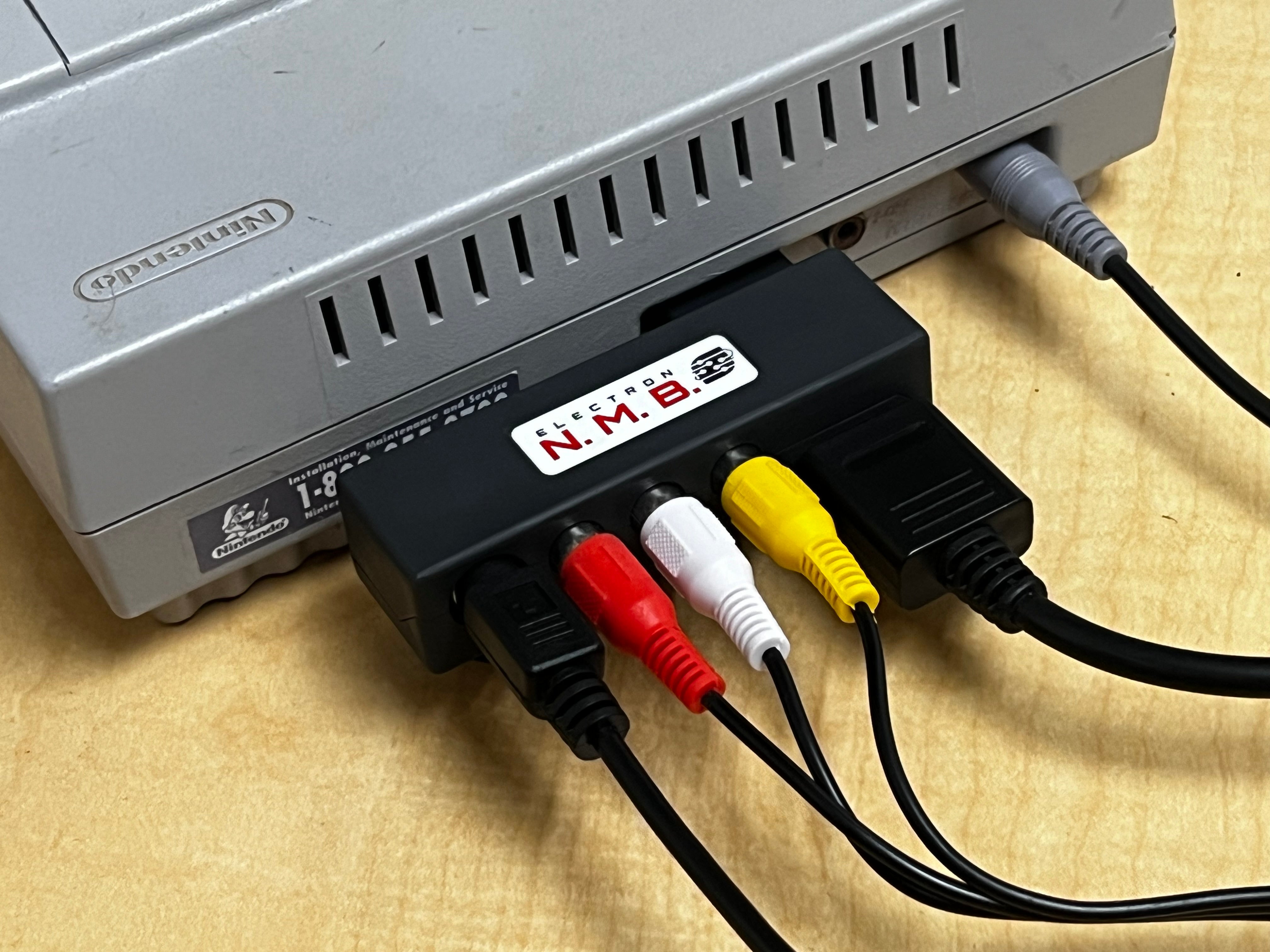

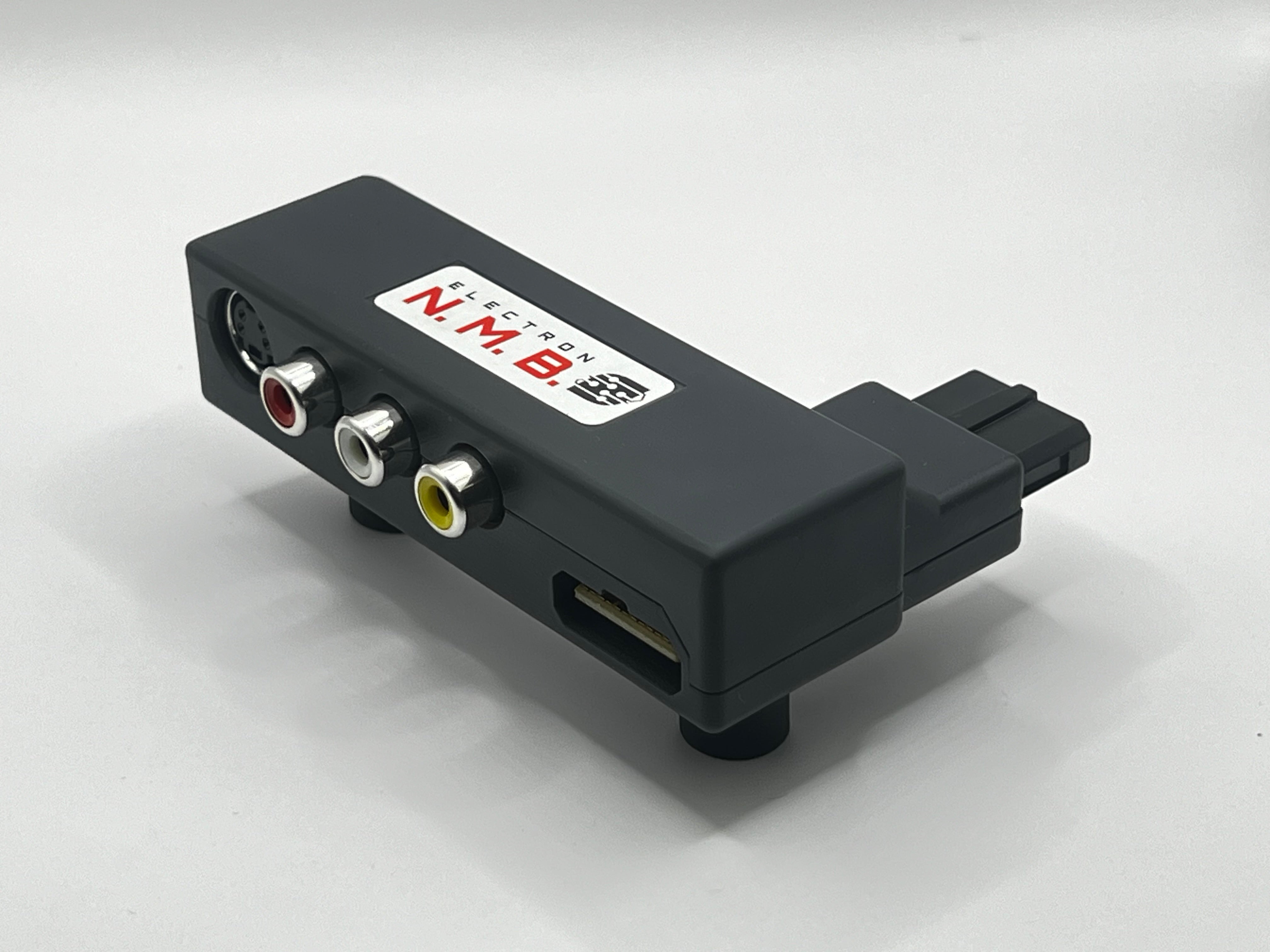

The "NMB" in ElectronNMB stands for Nintendo Multiout Breakout because that is exactly what it is! This small module attaches to the back of your SNES, N64, Famicom, and SNES Jr. and allows for simultaneous analog video output to the Composite, SNES, and/or the multiout connector using your existing high quality analog cables.

In order to get the highest quality output from your console, it is recommended to mate the ElectronNMB with high quality analog video cables to avoid video quality loss.

Features

Safely connect to any and all of the output connectors on the module at the same time
Connect to multiple displays or capture cards or both at the same time without any lag between them.
Straight pass-through of the video without any processing, filtering, or scaling.

Composite (CVBS) video and analog audio are available from all of the consoles, but not all consoles are capable of outputting S-Video and RGB video:

SNES: CVBS, S-Video, and RGB
SNES Mini: CVBS (achieve S-Video and RGB w/ Voultar's SNESRGB Kit)
Famicom: CVBS
N64: CVBS and S-Video (achieve RGB w/ Voultar's N64RGB Kit)

Technical Specifications

Video Input: RGBs, CVBS, and S-Video (depending on console)
Audio Input: Analog
Video Output:RGBs, CVBS, and S-Video (depending on console)
Audio Output: Analog
Compatibility: NTSC and PAL
Consoles: SNES, SNES Mini, N64, Famicom
Latency:LAG FREE!!

What's Included

ElectronNMB Module

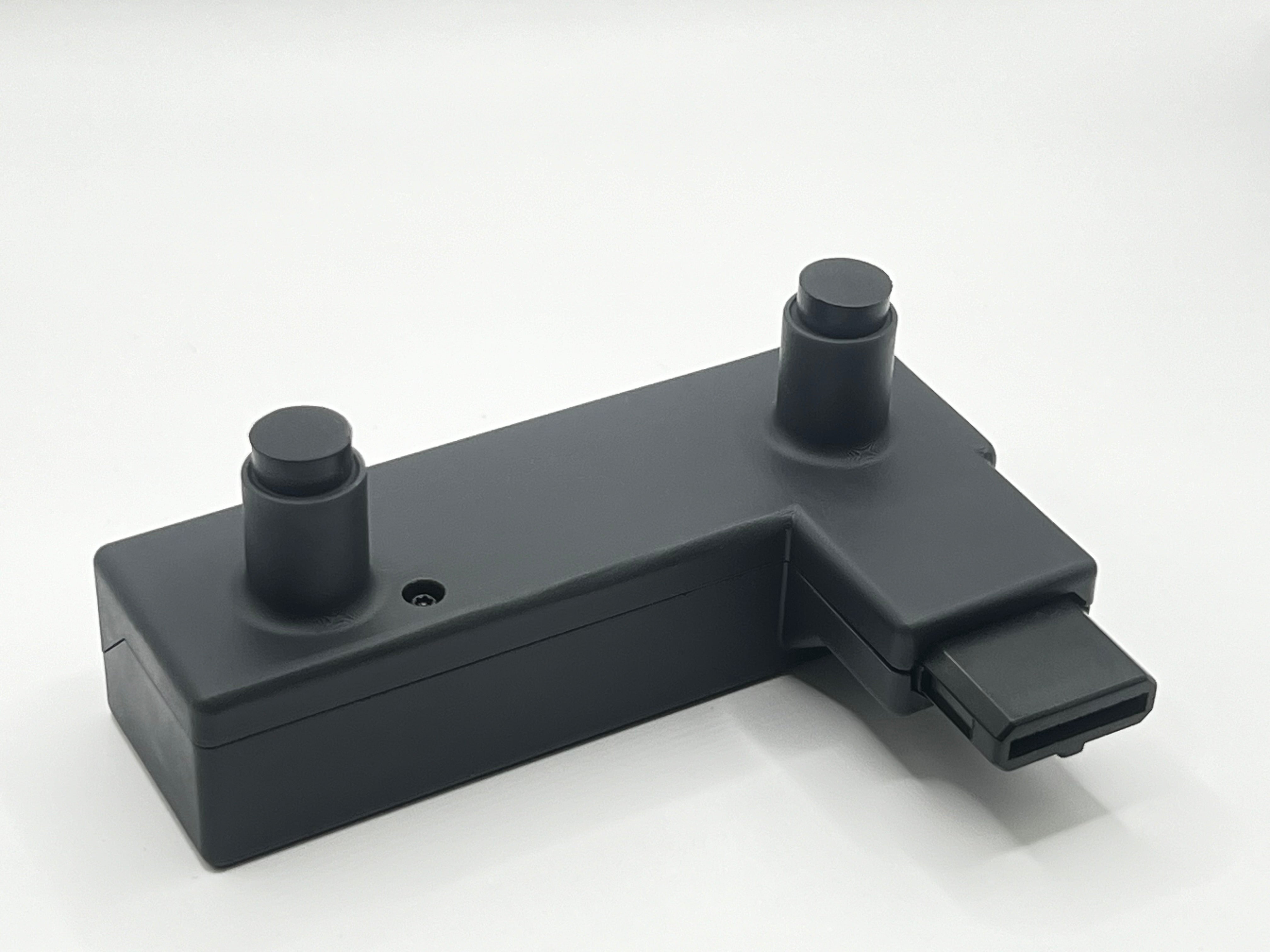

2x rubber feet for use with a SNES Mini

All company, brand, and product names are trademarks or registered trademarks of their respective holders. Electron Shepherd LLC has no affiliation to, is not associated or sponsored by, and has no express rights to third-party trademarks.

Quality Comparison

Videos

Electron Shepherd has no affiliation with the following creators. These videos were linked because they showcase the capabilities of this product.

Great stuff

Great stuff. Works like a charm. I speedrun games and needed to have an S-video feed for my CRT split with an RGB SCART signal out to my capture card for the folks watching the stream/vod. This is exactly what I was looking for.

Works as advertised

Works as advertised. Great output image quality. Good quality design.

Love it, but doesn't fit an official Nintendo composite cable

Firstly, I love the product. It is so good for getting two clean outputs. But unfortunately one of the internal retention tabs in the port broke off when I tried inserting my official Nintendo composite cable! I have not been able to get my official cable completely inserted. It is just extremely tight and I would have to force so much more to get it in there. I have to use a cheap cable to fit it in the NMB.

Works and fits perfect. I am able to play on my CRT with a separate output to a capture card.

Perfect

Do exactly what i want. I can use a RGB scart csync cable and extravt the original signal to stream at the same time.

Great product!

This breakout box works perfectly, especially for multi-monitor setups. It also doesn't interfere with any other connectors on the SNES due to its clever design.
The shop is very friendly and professional. Six stars!

ElectronNMB

Guys this is hecka cool. Helps split my output for CRT and stream capture card

Great!

I use it because I don't have any sound with my RAD2X on my N64 PAL Fra RGB modded when I play with NTSC games.
It works wonderfully!
Loud music with F-Zero X!
