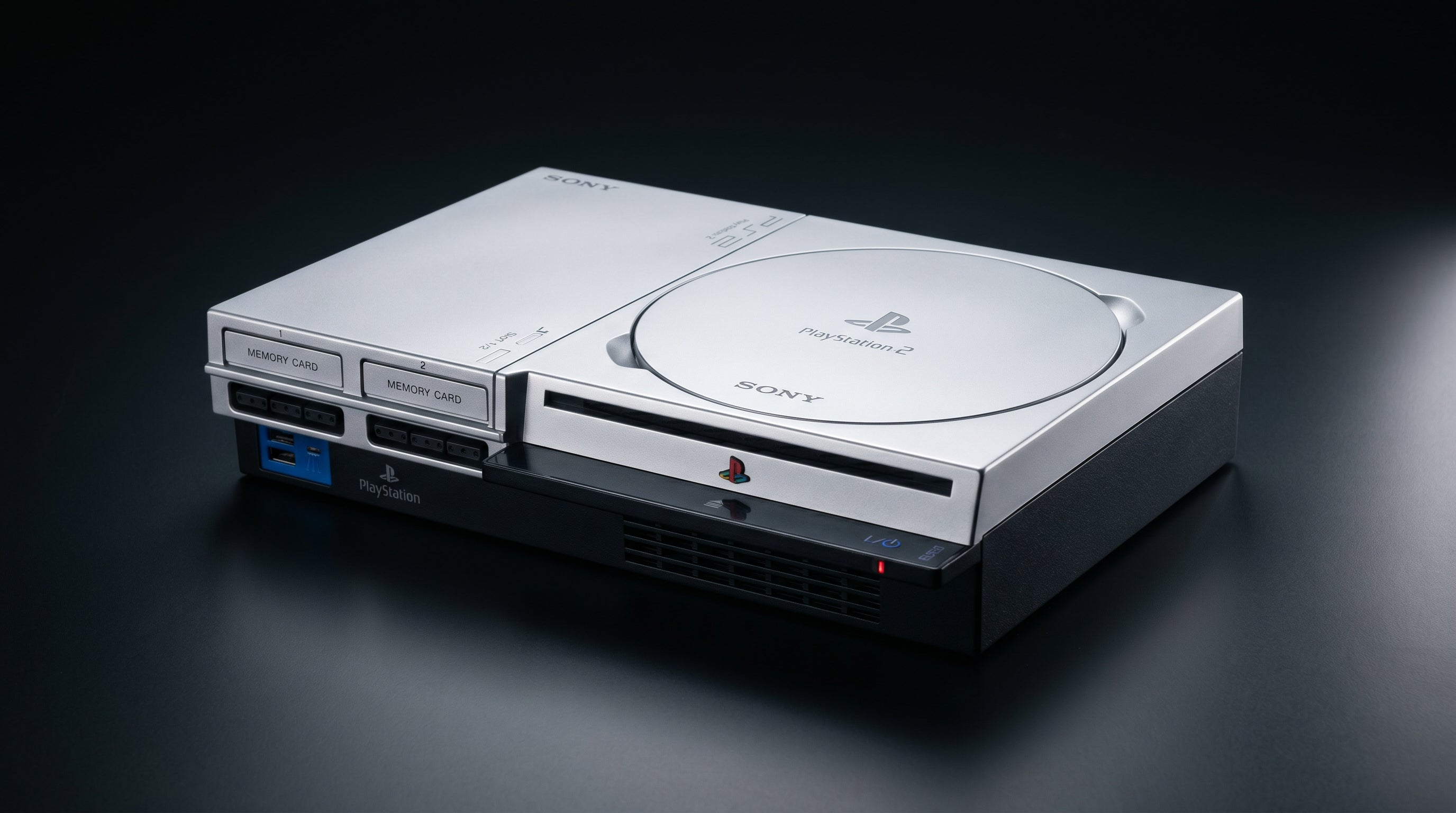

The PS2 can output 480p in supported games, but it is not a system-wide setting. You need a suitable signal path and the activation instructions for the exact game/release. This guide focuses on YPbPr component, including direct AV-port conversion as an alternative to a separate component cable. Composite and S-Video do not carry the PS2's 480p mode.


What 480p Actually Means

480i sends alternating fields; 480p sends a progressive frame. An interlaced input must be deinterlaced somewhere before a flat-panel display can show it. Moving edges and fine detail can expose artifacts, depending on the content and processing. The transmitted timing is distinct from the game's internal rendering resolution and frame rate.

A typical NTSC 480p timing refreshes at approximately 60 Hz without interlacing. That does not guarantee that the game renders 60 new frames each second. It avoids deinterlacing of that input and can improve motion/detail, with the final result depending on the game and display.

For a deeper look at how these signal types compare across consoles, the retro gaming video signal guide covers the full picture from composite through RGB.


What You Need: A Compatible Progressive-Signal Path

For the component route, AV Multi Out supplies YPbPr, separating luma from two color-difference signals. A component cable can carry this to RCA-equipped equipment, or a direct adapter can use it at the console port. RGB progressive output requires suitable RGB/sync support in the receiving equipment; ordinary SCART compatibility alone is not enough.

Composite cable. Carries standard-definition interlaced and low-resolution non-interlaced output as used by the game, but not the PS2's 480p mode. 240p/288p should not be confused with 480p.

S-Video cable. Separates brightness and color, but does not provide the PS2's 480p path. Low-resolution non-interlaced modes are a separate matter.

YPbPr component path. A suitable component cable or direct AV-port adapter can carry a supported game's progressive timing. A separate RCA cable is not required when the adapter plugs directly into AV Multi Out.

If using RCA equipment, choose a correctly wired PS2-compatible component AV cable. Some PS3-labeled component cables are compatible too; verify the manufacturer's explicit PS2 support and condition. A cable does not add a game mode, and a part number or similar plug alone does not prove compatibility.

More on cable options and compatibility is covered in the PS2 component cable guide.


How to Enable 480p

The PS2 system software does not have a 480p toggle. There is no setting in the PS2 browser or system configuration that globally enables progressive scan. Each game handles it independently.

Follow the exact game manual. Some releases use a startup button combination, others a menu. There is no universal hold-X rule, and absence of a prompt from one attempted sequence does not prove lack of support.

Enable the mode documented for your game
  1. 1

    Start the game as normal. Let it load past the PS2 boot screen and into the game's own loading sequence.

  2. 2

    Use the game's documented activation. For example, Resident Evil 4 specifies holding Triangle + X at startup. Gran Turismo 4 instead documents its Video Output menu. Check the table below for sources and region scope.

  3. 3

    Confirm only on a working display path. Follow the game's confirmation/revert instructions. If there is no prompt, check the manual before deciding the mode is unsupported.

Record which release and region you are testing. A different edition can have different options, and the same startup method should not be assumed for every game in a series.

If the picture disappears on switching modes, check the receiving device's actual input-mode table, converter support, cables and power. Revert according to the game manual. A blank screen alone does not identify the television as the faulty or incompatible part.


Verified Progressive-Scan Examples

These are examples verified against the linked original publisher manuals for the pictured NTSC-U releases, not a complete compatibility list. For another game or region, consult that exact release's manual. Omission does not establish lack of progressive scan.

Game / release scope Documented activation Original manual
Gran Turismo 4, NTSC-U Options > Screen > Video Output: Progressive 480p. HDTV 1080i is a separate option. Sony manual, Options / Screen, printed p.30
Resident Evil 4, NTSC-U Hold Triangle + X while starting. Confirm Yes, then confirm again if the picture is correct. The manual calls the mode 525p. Capcom manual, Progressive Scan Mode, printed p.6
Tekken 5, NTSC-U Options > Display Setting > Progressive Mode; confirm Yes. Manual describes automatic return after ten seconds if it does not display properly. Namco manual, Display Setting, printed p.23

Do not infer support from genre, release year or an undocumented button test. These examples show why a game-specific source matters: both the available modes and the activation method differ. Keep the original mode available when testing.


Getting 480p to a Modern TV

If your display lacks component input, choose a compatible HDMI conversion/processing path. Check its accepted source modes and the TV's accepted HDMI timings. A connector conversion alone does not guarantee a displayable result.

The full signal chain for 480p on a modern TV looks like this:

PS2 AV Multi Out. Select Y Cb/Pb Cr/Pr for the component input, then enable the game's documented progressive mode. Plug Pulse directly into the console if using that route.

Separate 5 V USB-C power for Pulse. Connect a compatible regulated source and matching cable. A component RCA cable belongs to a different processor route and is not an input to Pulse.

Pulse HDMI output. Converts component video and analog audio from AV Multi Out without internal scaling. Connect a standard HDMI cable.

Compatible HDMI display. Confirm the exact input supports the chosen timing. Do not assume every TV, monitor, capture card or receiver accepts every console mode.

ElectronPulse is our direct PS2/PS3 AV-to-HDMI converter. It needs separate regulated 5 V USB-C power and does not upscale. Check the ElectronPulse user manual, game mode and display timing support together before buying.

For more context on the full setup, the PS2 HDMI adapter guide and the PS2 video quality guide cover the complete picture path from console to display.


Frequently Asked Questions

Can I enable 480p without a separate component cable? A direct AV-port component adapter such as Pulse does not need a separate RCA cable. A compatible RGB progressive path is another equipment-specific possibility. Composite and S-Video do not carry PS2 480p; their possible 240p/288p output is a different low-resolution mode.

Why doesn't every PS2 game support 480p? The game must provide a suitable output/rendering path; a console system setting or passive cable cannot add it. Check the specific release rather than assume the developer's reason for including or omitting an option.

Does 480p look better than 480i? It avoids deinterlacing of that input and can improve moving edges and detail. The visible difference depends on the game, TV or processor and viewing conditions. Compare supported modes rather than assume an entire price class of televisions behaves the same way.


ElectronPulse connects directly to PS2 AV Multi Out, with separate regulated 5 V USB-C power and HDMI. For a supported game's 480p mode, check that every device in the chain accepts the output. Pulse does not scale interlaced games into progressive ones.
